PR10 Ultrasonic Pulse Generator and Receiver

Product Advantages

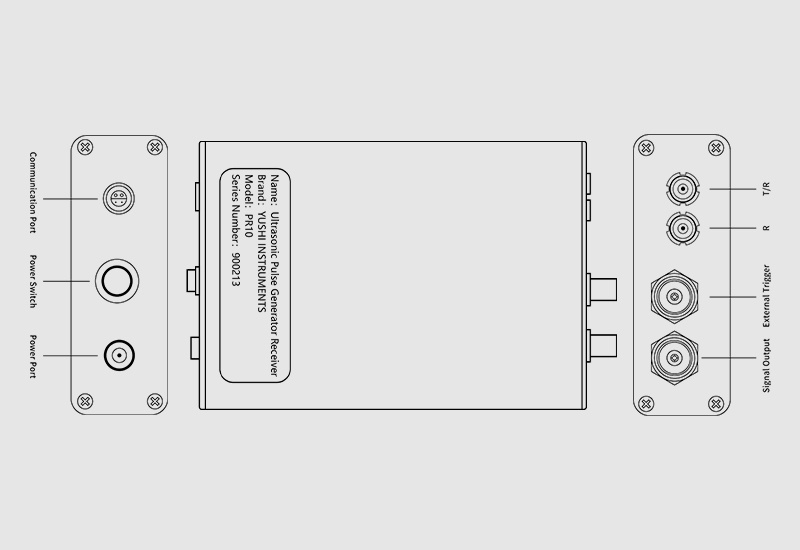

Selected connectors, interfaces, power supply
Maximum bandwidth of the receiver is 20MHz
Maximum excitation voltage is 200V
Damping value can be set to multiple adjustable levels

Product Advantages

Internal trigger for repetition frequency: 8 adjustable levels (4Hz-2KHz)
Pulse width adjustable from 1 to 40 times (1 time is approximately 28ns)
Receiving gain range is 59dB
Supports one transmit one receive mode, pulse echo mode

Replaces Traditional Pulse generation And Receiving Devices

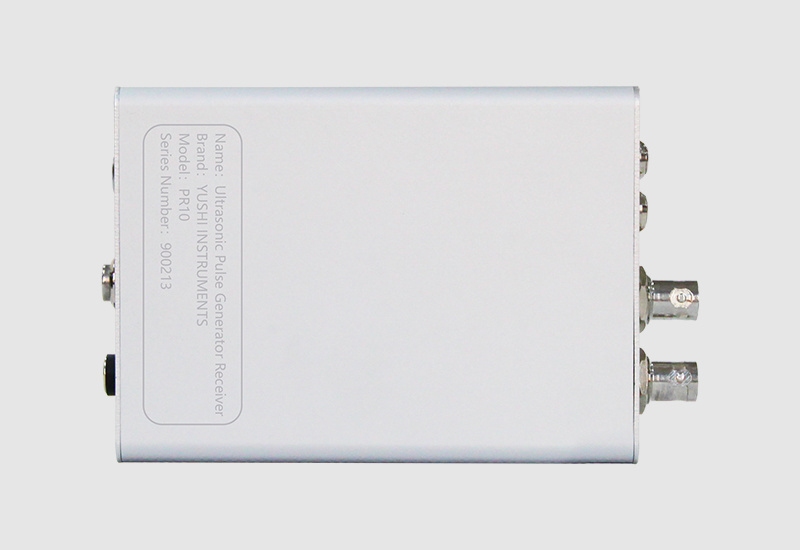

PR10 pulse generation and receiving device
Users have provided very positive feedback after use, which can well meet their own needs,completely replacing imported traditional transmitting and receiving devices. At the same time, it allows users to pursue high-performance products while also enjoying economical and affordable prices, reducing costs for the using units.

Host specification

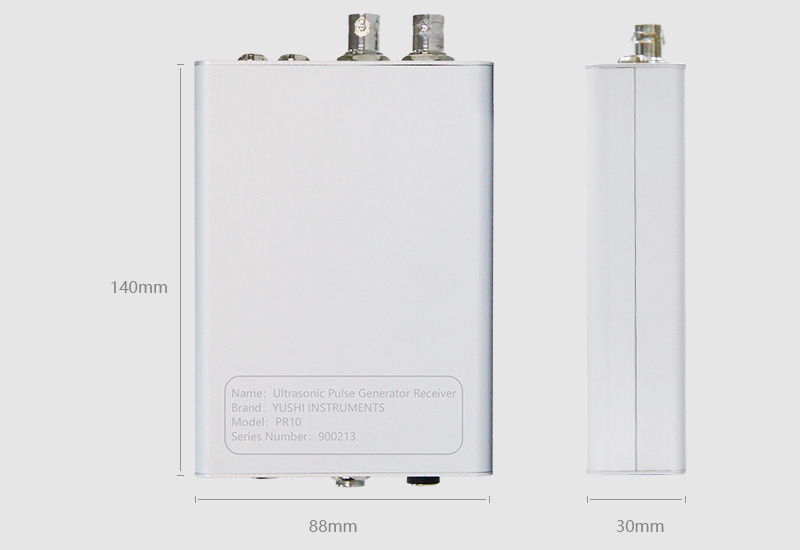

Overall dimension
140x88x30xmm
weight
230g
Operating temperature
0-55℃

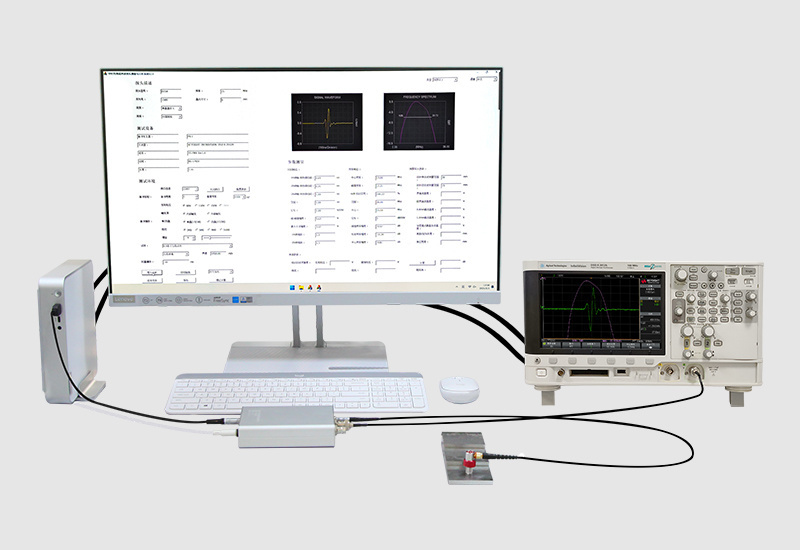

Test platform

Build an ideal test platform
The signal output interface is used to connect the oscilloscope and display the received waveform;
The probe interface is used to connect single and dual element probes;

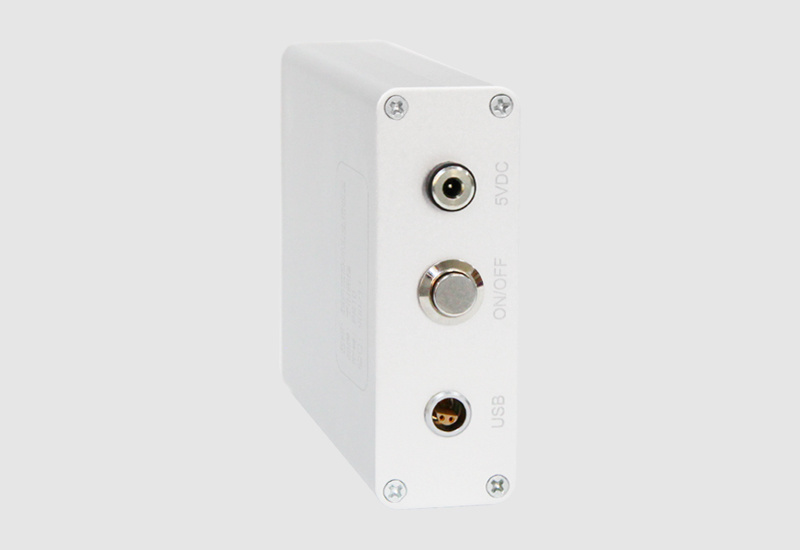

Communication interfaces are used to connect computers.
