YUT2600 Series Ultrasonic Flaw Detector

Key words:

Product Classification:

Telephone:

Product Features

LCD Display
Adjustable brightness true color TFT LCD display
Sturdy and durable casing
Designed for field environments
Working Language
Bilingual operation interface in Chinese and English

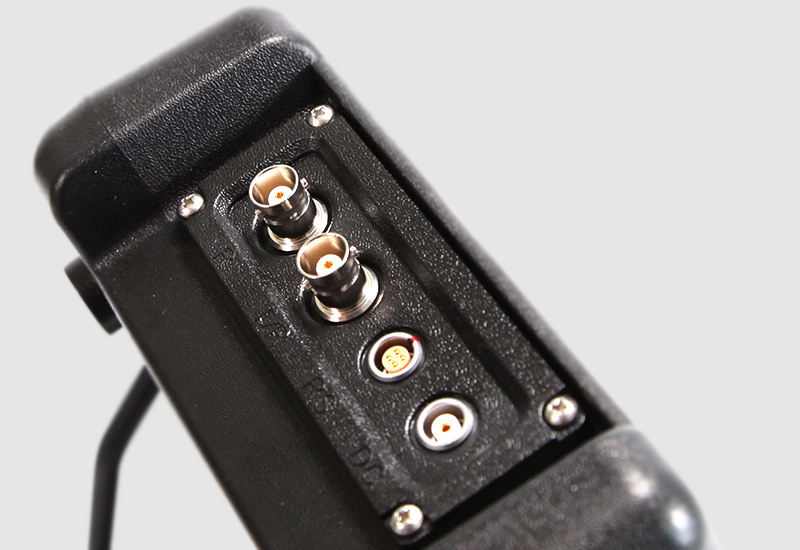

Instrument Interface

Q9 (BNC) Interface
Cable is Q9-C9

Instrument Functions

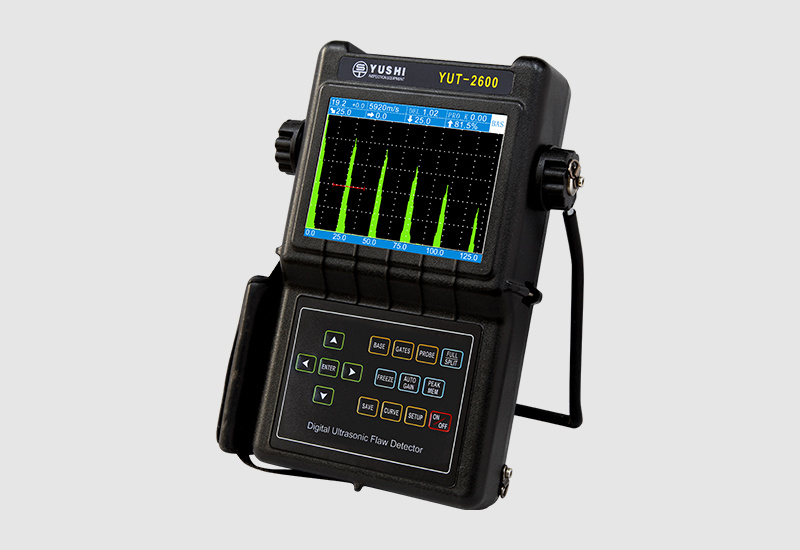

Full Screen Display Function
Echo display area covers the entire screen
Peak Memory
Real-time envelope display of the highest wave of defects

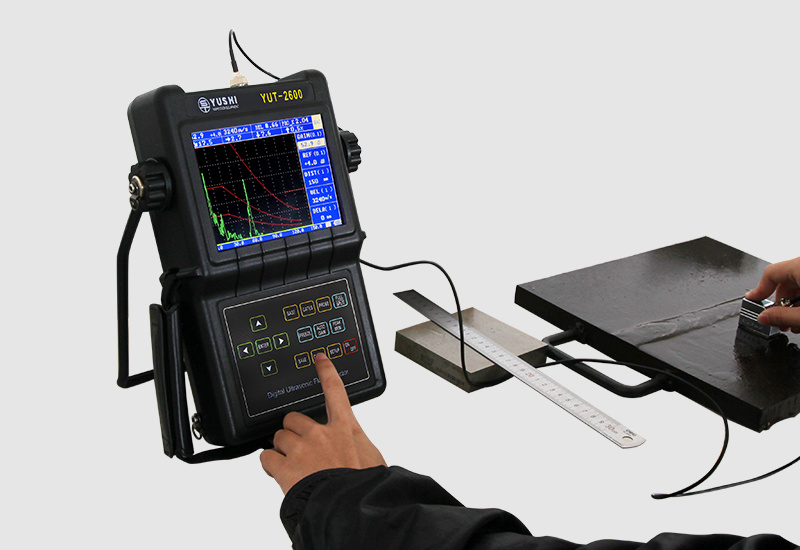

Application of Curves

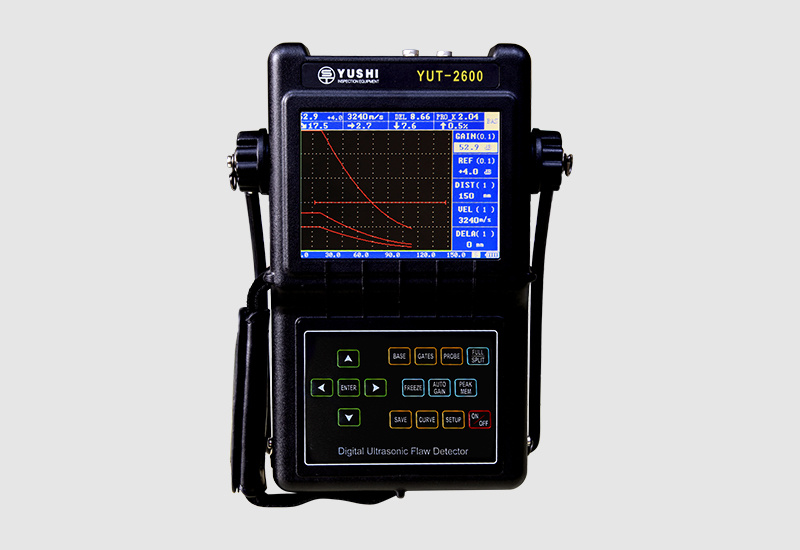

DAC Curve
YUT-2600, YUT-2620
AVG Curve
YUT-2620

Communication Software

Ultrasonic flaw detector communication software
Optional RS232 adapter cable output to USB drive

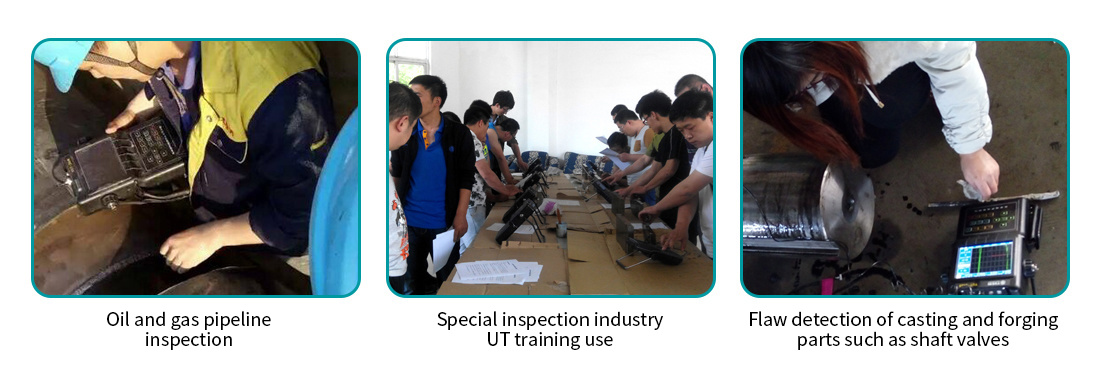

Field Applications

Wide application range

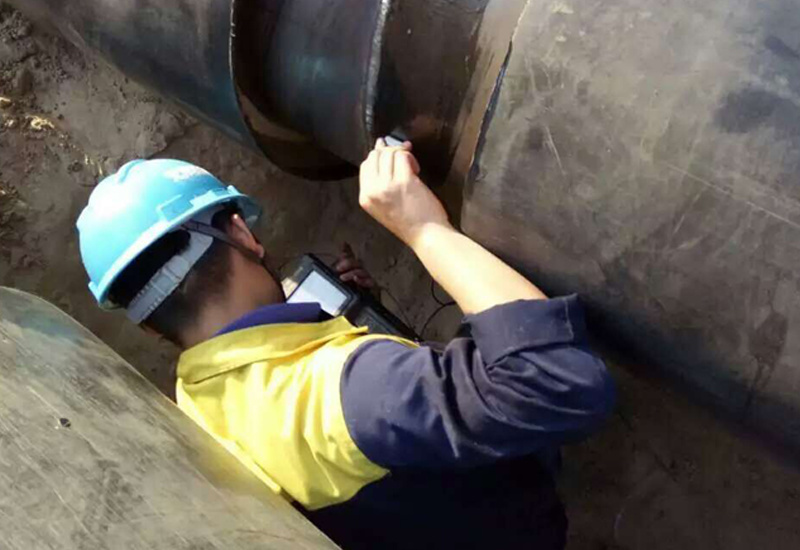

Pipeline pressure vessel flaw detection
Special inspection industry UT training use
Weld flaw detection in the manufacturing industry
Casting and forging flaw detection in the manufacturing industry

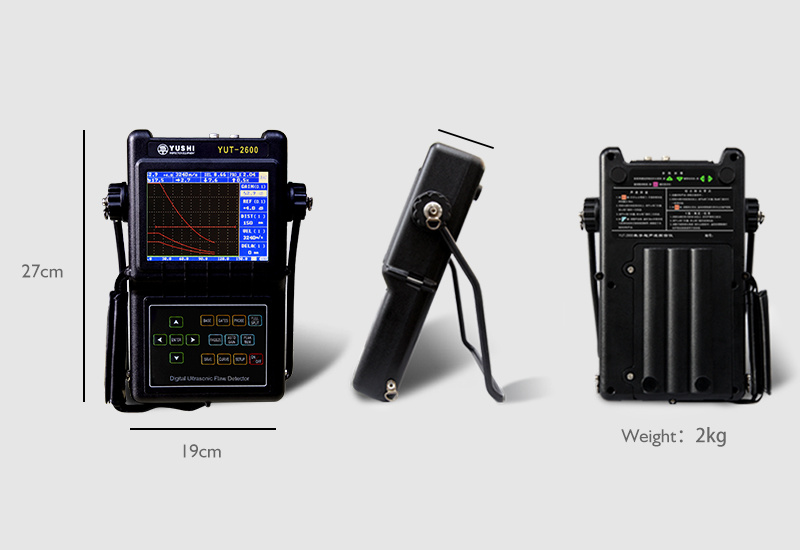

Appearance Features

Dimension
270mmX190mmX60mm
Weight
2kg (including battery)
YUT-26 Series - Practical Application

YUT-26 Series - Technical Parameters

Project	Index	Project	Index
Working Frequency	(0.5-15) MHz	Sensitivity Margin	>=55dB (Depth 200mm with 2 Flat Bottom Holes)
Detection Range	(0-4500)mm	Suppression Range	0-80% Adjustable
Material Sound Speed	(1000-9999)m/s	Resolution	>=40dB (5P14)
Working Mode	Pulse Echo, Dual Crystal	Dynamic Range	≥32dB
Pulse Shift	(0-2000) mm	Average Electrical Noise Level	≤10%
Probe Zero Point	(0-99.99)us	Battery Working Time	Standby for 9 hours
Gain Adjustment	(0-110)dB, (0.1, 1, 2, 6)dB Steps	Power Supply	12V DC, 220VAC
Vertical Linear Error	≤3%	Size	270mm×190mm×60mm
Horizontal Linear Error	≤0.3%	Weight	2kg (including battery)

YUT-26 Series - Function Comparison

Model	YUT-2600	YUT-2620
High Bright True Color Screen	√	√
DAC Curve	√	√
AVG Curve	×	√
ΦValue Calculation	×	√
Distance Compensation	×	√
Variable Square Wave	×	×
Variable Emission Pulse Generator	×	×
Impedance Matching	×	×
Data Storage	√	√
UtView Software	√	√

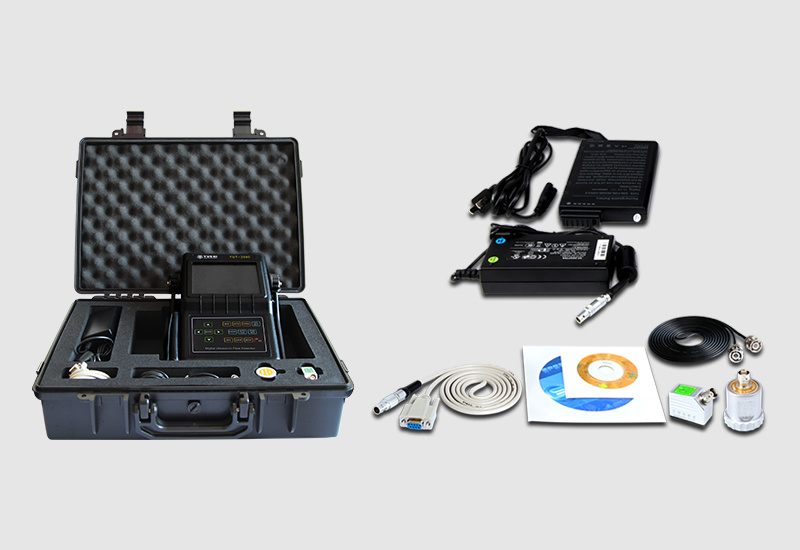

YUT-26 Series - Standard Configuration

● Ultrasonic Flaw Detector Main Unit	● Angle Probe (including test report)	● Manual
● Lithium Battery	● Communication Cable	● Certificate of Conformity
● Charger	● CD (including communication software + instrument demonstration)	● Warranty Card
● Probe Cable	● Instrument Case	● Tracking Card
● Straight Probe (including test report)	● Instrument Case Strap	● Packing List
