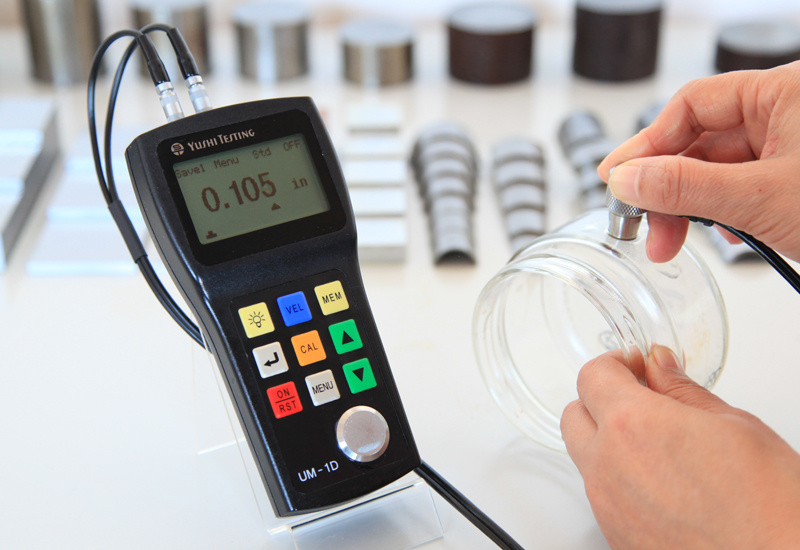

UM-1 Series Ultrasonic Thickness Gauge
Key words:
Product Classification:
- Product Features
- Applications
- Technical Parameter
- Standard Configuration
-

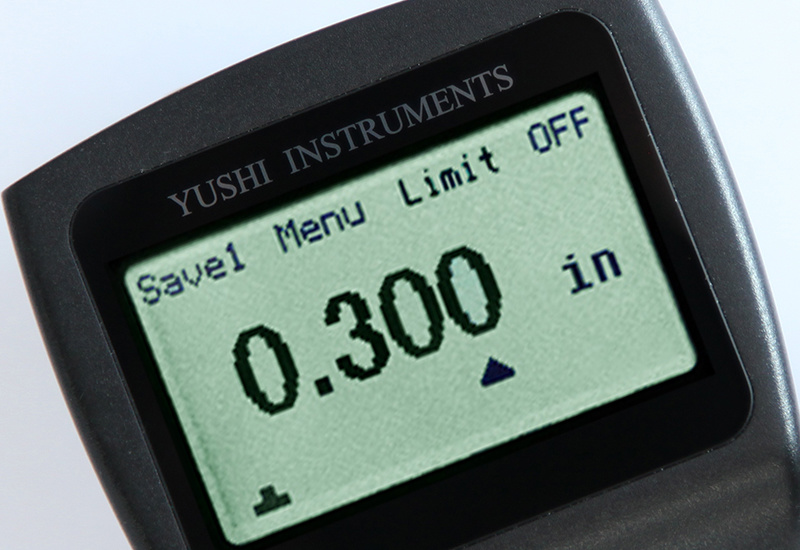

Tempered glass integrated molding window
Light transmittance increased to 90%, high screen transparency with clear digits
Tempered glass integrated molding window, about 200% increase in cost compared to PC material.
Hardness increased from 3-4H to 7-8H, resistant to knife marks
The backing adhesive has been changed to 3M molded backing adhesive, with good viscosity and not easy to fall off.
Standard probe

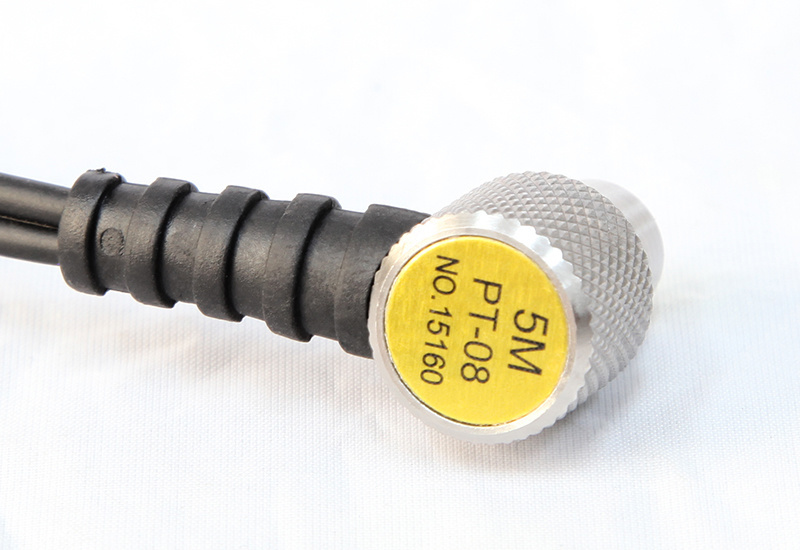

Standard PT-08B probe (chamfer design)
Ergonomic design, comfortable grip, stable to hold, not tiring for long periods.
Surface anti-corrosion treatment, can adapt to harsh environments
Cost increased by about 40% after the improvement of the PT-08B chamfer probe process.Schematic diagram of the penetrating coating function
Ordinary thickness measurement mode
Measure the time difference T1 (including coating thickness) between the emitted pulse and the first bottom surface echo.
Penetrating coating mode
Measure the time difference T2 (excluding coating thickness) between two consecutive bottom surface echoes.
Adapt to harsh environments
Measurement accuracy remains stable even in harsh environments
As strong as reinforced steel
Can measure various materials
Steel, copper, aluminum, PVC, glass, etc. -

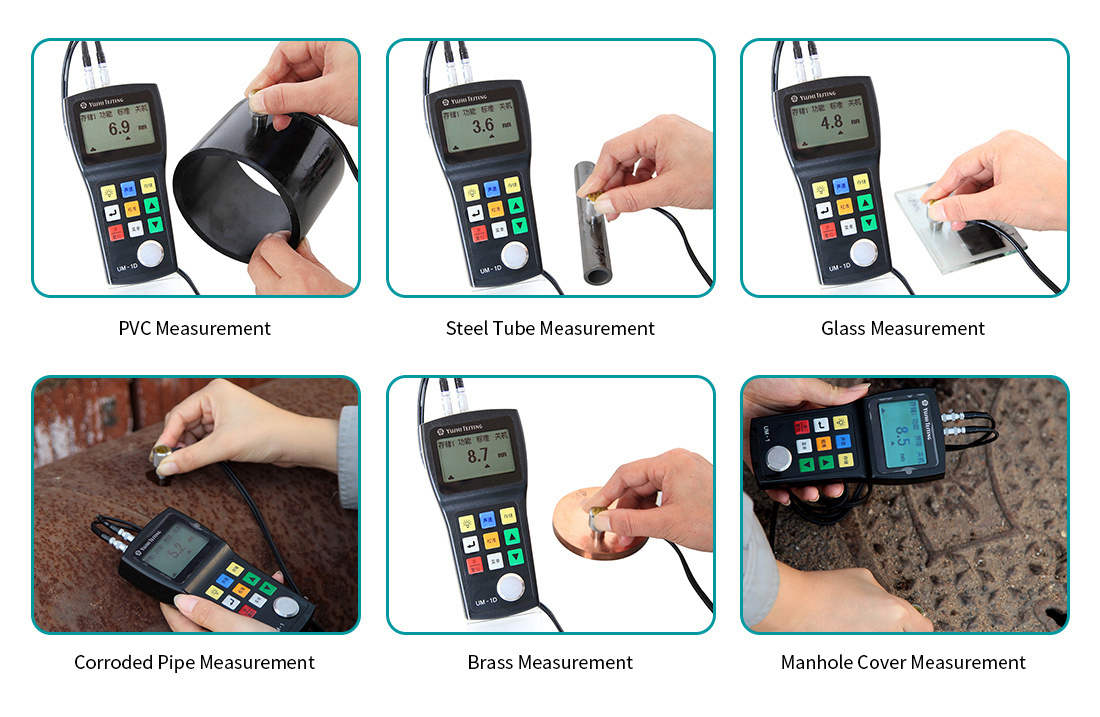

UM-1 Series - Measured Applications
-
UM-1 Series - Technical Parameters
Display Screen 128×64 Dot Matrix LCD Display (EL Backlight) Working Principle Using dual crystal probe pulse-echo method, echo-echo method (UM-1D) Standard Mode Measurement Range 0.8mm~300mm (depending on the probe used and the material being measured) Coating Mode Measurement Range 3mm~20mm (using standard probe, UM-1D) Measurement Lower Limit for Pipe Material (Steel) Middle 20mm×3.0mm (standard probe), Middle 15mm×2.0mm (small diameter pipe probe), measurement error ≤±0.1mm. Measurement Error ±0.1mm H<10mm:±(1%H+0.1)mm H≥10mm Note: H is the actual thickness of the measured object Repeatability 0.1mm Measurement Resolution 0.1mm or 0.001in Unit Millimeters or Inches Calibration Mode Quick Calibration, Two-Point Calibration V Path Correction Automatic V sound path correction, compensating for the non-linearity of the dual crystal probe Measurement Update Rate 4Hz Material Sound Speed Range 1000~9999 m/s or 0.0394~0.3937 in/us Storage Function Divided into 5 arrays, can store 500 thickness values Minimum Value Capture Refers to capturing the minimum value in the measurement process Alarm Function Thickness limits can be set, with alarm sound prompts for measurements outside the limits Sound Speed Storage Can store sound speeds for 5 different materials Working Language Can choose Chinese, English Communication Interface USB interface or RS232 serial port (optional) Application Software UMView software for the transmission, storage, analysis, and editing of measurement data (optional) Power Supply Two 1.5V AA batteries, with low voltage prompt when power is insufficient Operating Time Alkaline batteries can be used for 200 hours (without backlight) Automatic Shutdown Automatically shuts down after 5 minutes of inactivity Working Temperature -10℃~+50℃ Size 149mm×73mm×32mm (H×W×D) Weight 210g (including battery) -
UM-1 Series - Standard Configuration

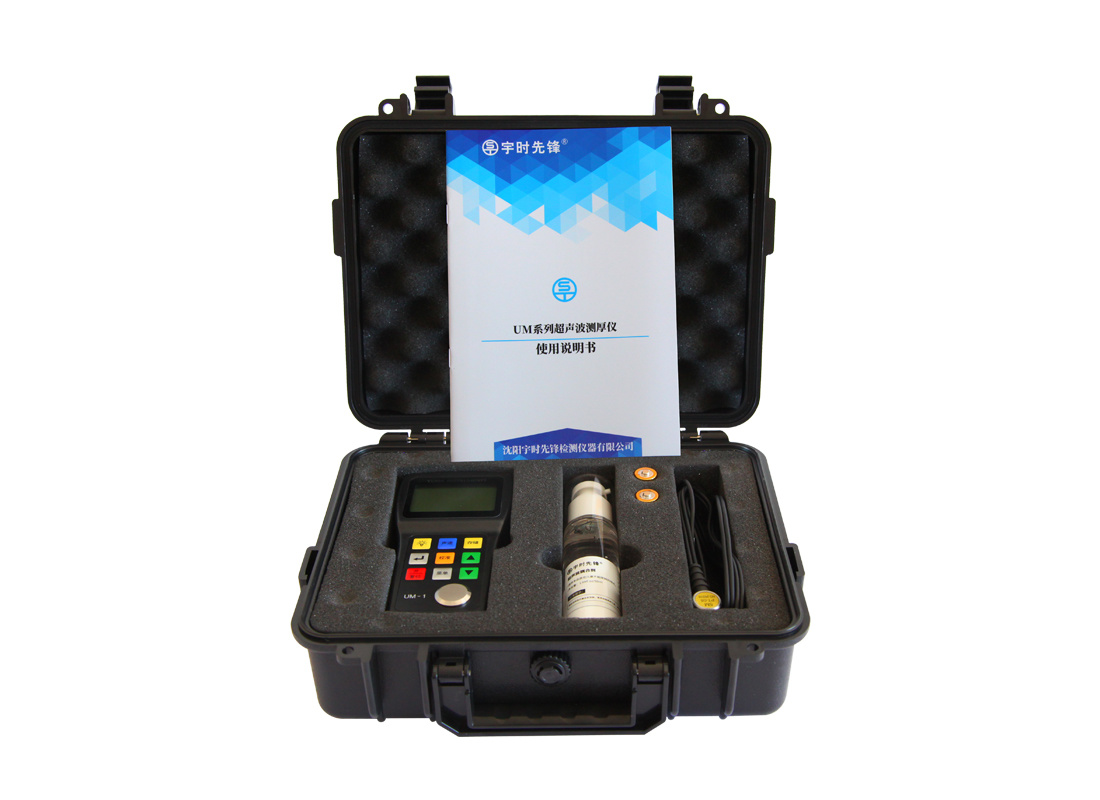

● Thickness Gauge Main Unit ● User Manual ● Couplant ● Certificate of Conformity ● Probe (including Test Report) ● Warranty Card ● No. 5 Alkaline Battery ● Packing List ● Product Packaging Box ● Factory Calibration Certificate UM-1 Series - Optional Accessories
● High-Temperature Probe ● Cast Iron Probe ● Small Diameter Pipe Probe ● Miniature Probe ● Probe Cable ● Step Test Block ● Application Software ● Communication ● Protective Sleeve ● Couplant and High-Temperature Couplant
