UM-2 Series Ultrasonic Thickness Gauge
Key words:
Product Classification:
- Product Features
- Applications
- Technical Parameter
- Standard Configuration
-
Basic Characteristics
Resolution
0.01mm or 0.001in
Measurement Range
0.8-300mm, 3-18mm (coating penetration mode)
Storage Function
Can store 500 thickness values

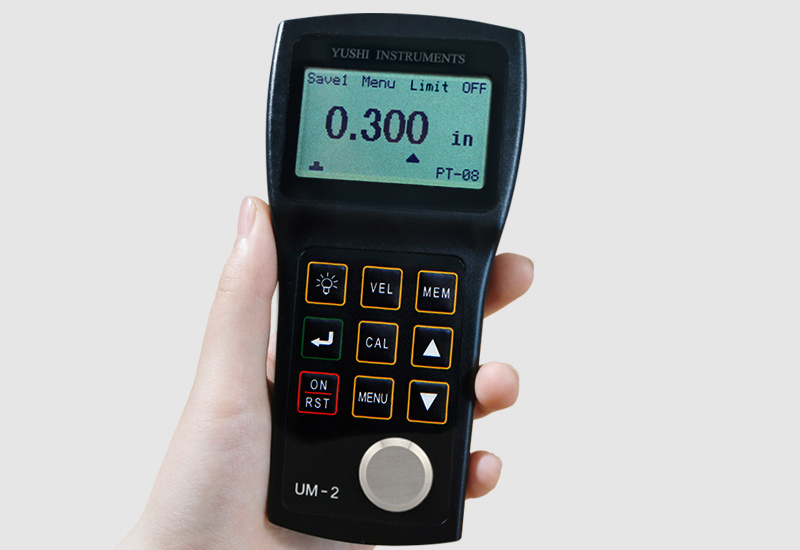

Appearance Characteristics
Ergonomic design
Comfortable grip, suitable for long-term use without fatigue.
Corrosion-resistant, fatigue-resistant, and excellent mechanical properties
Resistant to acid and alkali chemical corrosion, high impact strength, excellent elasticity, toughness, and durability.Manual Calibration

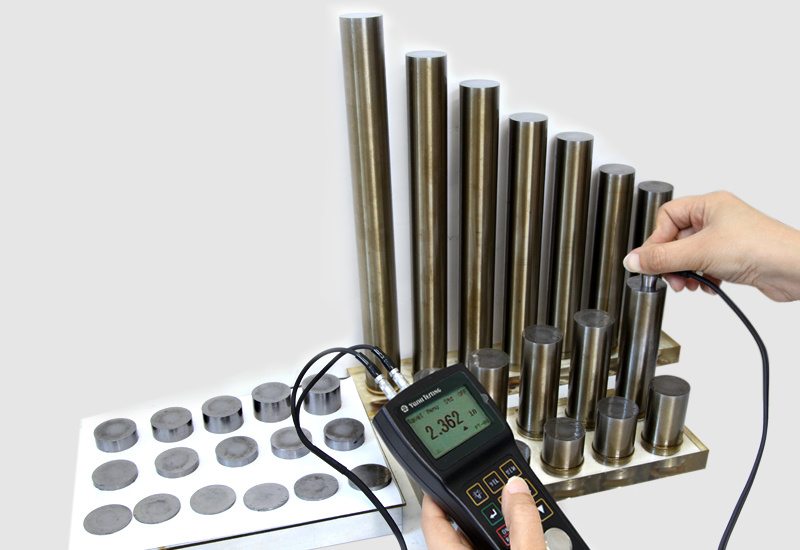

34-point manual calibration
Multi-point nonlinear calibration ensures highly accurate measurements.

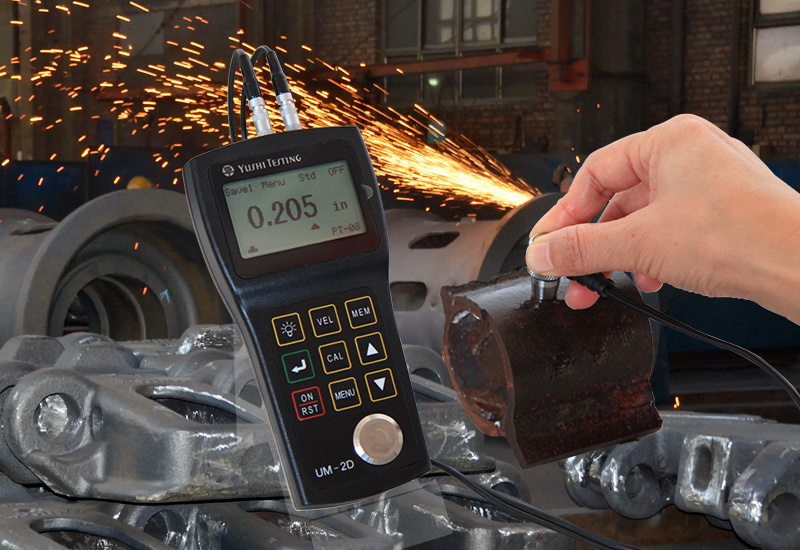

Adapt to Harsh Environments
Stable measurement performance in harsh environments
As strong as reinforced steel
Can measure various materials
Steel, copper, aluminum, PVC, glass, etc. -

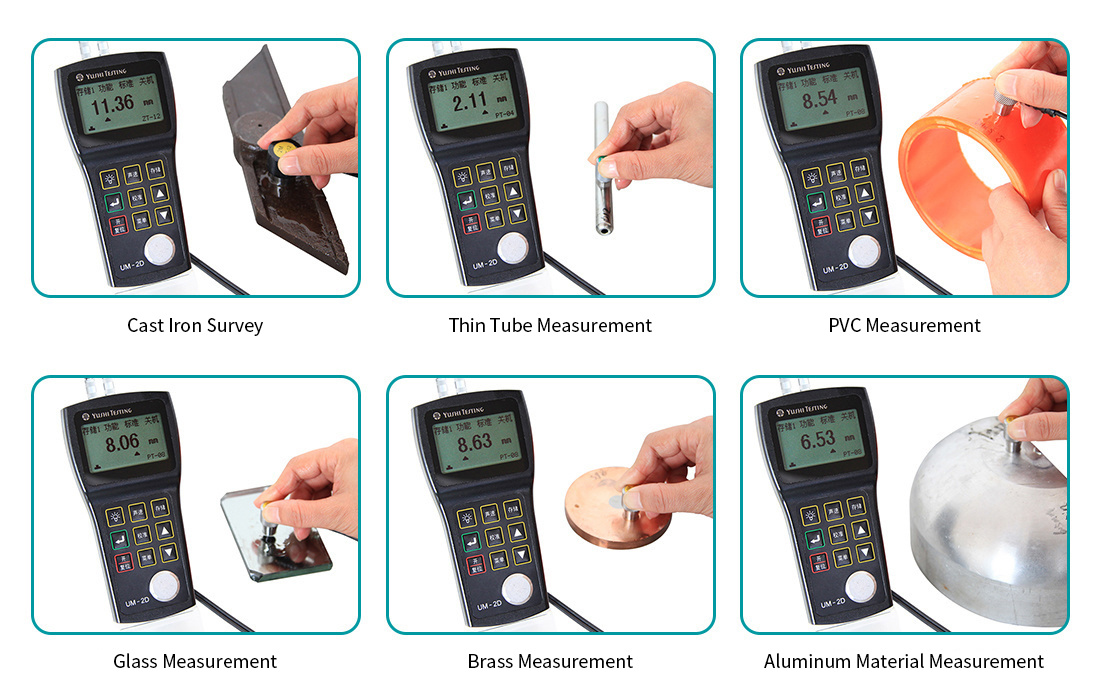

UM-2 Series - Measured Application
-
UM-2 Series - Technical Parameters
Display Screen 128×64 Dot Matrix LCD Display (EL Backlight) Working Principle Using dual crystal probe pulse-echo method, echo-echo method (UM-2D) Standard Mode Measurement Range 0.8mm~300mm (depending on the probe and the material being measured) Coating Mode Measurement Range 3mm~20mm (using standard probe, UM-2D) Measurement Lower Limit for Pipe Materials (Steel) φ20mm×3.0mm (standard probe), φ15mm×2.0mm (small diameter tube probe), measurement error ≤ ±0.1mm. Measurement Error ±0.05mm (H<10mm) ±(0.5%H+0.01) (H≥10mm)Note: H is the actual thickness of the measured object Repeatability 0.05mm Measurement Resolution 0.01mm or 0.001in Unit Millimeter or Inch Calibration Mode Quick Calibration, Two-Point Calibration V Path Correction Automatic V sound path correction, compensating for the non-linearity of the dual crystal probe Measurement Update Rate 4Hz Material Sound Speed Range 1000~9999 m/s or 0.0394~0.3937 in/us Storage Function Divided into 5 arrays, can store 500 thickness values Minimum Value Capture Refers to capturing the minimum value in the measurement process Alarm Function Can set thickness limits, with alarm sound for measurements outside the limits Sound Speed Storage Can store sound speeds for 5 different materials Working Language Can choose Chinese, English Communication Interface USB interface or RS232 serial port (optional) Application Software UMView software for data transmission, storage, analysis, and document editing (optional) Power Supply Two 1.5V AA batteries, with low voltage prompt when power is insufficient Operating Time Alkaline batteries can be used for 200 hours (without backlight) Automatic Shutdown Automatically shuts down after 5 minutes of inactivity Working Temperature -10C~+50℃ Size 149mm×73mm×32mm (H×W×D) Weight 210g (including battery) -
UM-2 Series - Standard Configuration
● Thickness Gauge Main Unit ● User Manual ● Couplant ● Certificate of Conformity ● Probe (including Test Report) ● Warranty Card ● No. 5 Alkaline Battery ● Packing List ● Product Packaging Box ● Factory Calibration Certificate UM-2 Series - Optional Accessories
● High-Temperature Probe ● Cast Iron Probe ● Small Diameter Pipe Probe ● Miniature Probe ● Probe Cable ● Step Test Block ● Application Software ● Communication ● Protective Sleeve ● Couplant and High-Temperature Couplant
