UM-5 Series Ultrasonic Thickness Gauge
Key words:
Product Classification:
- Product Features
- Applications
- Technical Parameter
- Standard Configuration
-

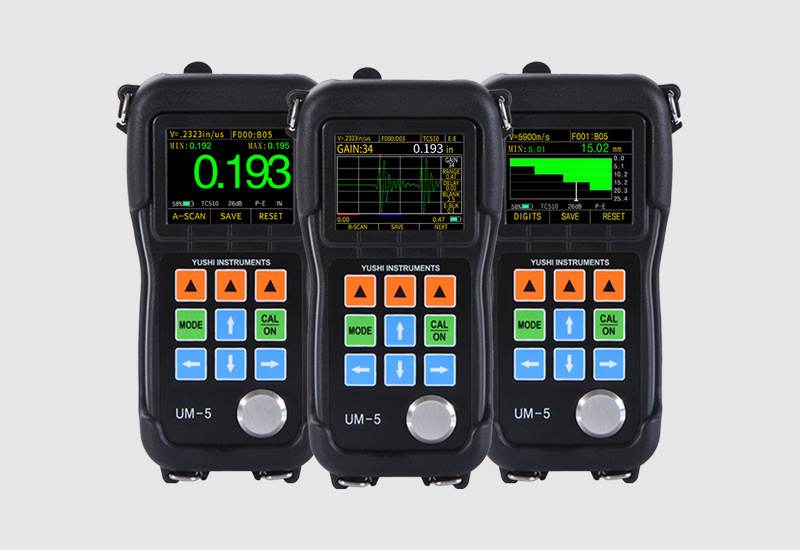

Basic Features
Resolution
0.01 or 0.1 mm (0.001 or 0.01 in), selectable across the entire measurement range.
Measurement Range
0.5-508 mm (depending on the probe used, material, and
surface condition)
Main Instrument Functions

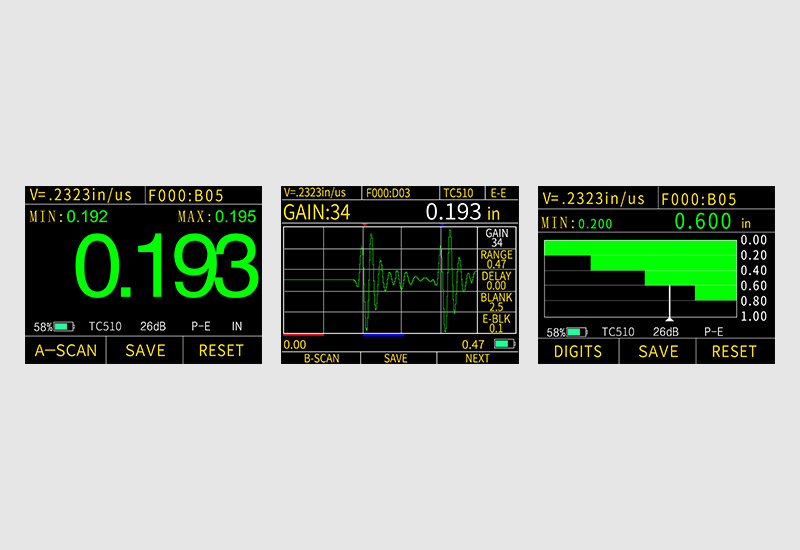

Real-time Color A-scan
Easily identify problems based on the waveform.
Real-time Color B-scan
Displays a cross-sectional view along the probe's movement
trajectory, used to observe the bottom profile of the workpiece being measured.
Large Digital Interface
Clear, large digital display, intuitive
Coating Penetration Function
Working Principle
Achieved by measuring the two consecutive bottom surface
echoes of the substrate.
Other Features
1. Zero-point calibration free; 2. High stability; 3. Zero drift.
Storage Function

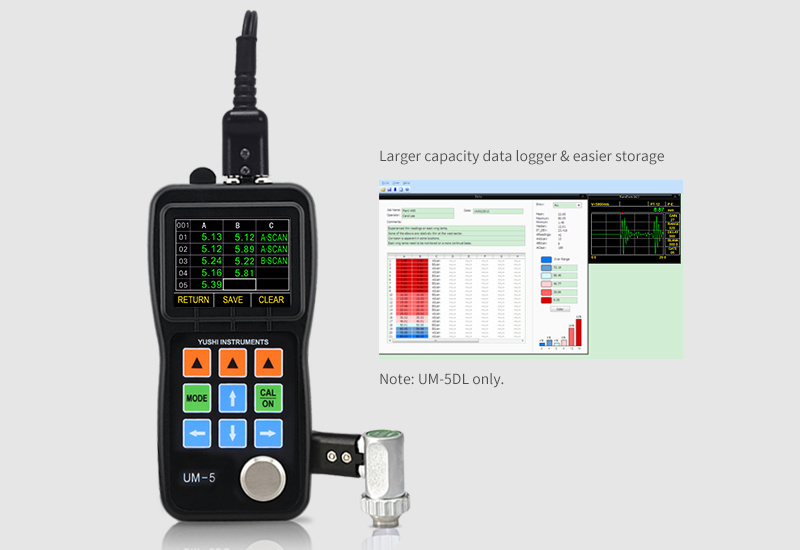

Large Capacity Storage
Can store 100,000 thickness values and 1000 A/B scan
waveforms.
Communication Software
DataView Data Statistics and Management Software

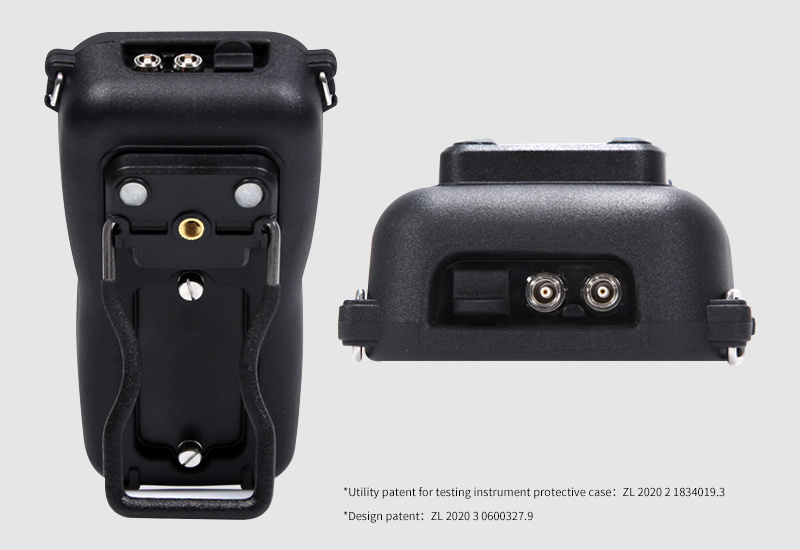

Standard Rubber Protective Cover
Patented Cover
Frees up one hand during measurement, making
measurement more convenient.
Easy-to-use screw
Offers high flexibility and low cost advantages, not easy to
lose, and convenient for battery replacement.
Adaptable to Harsh Environments
Large Color Screen, Clear and Bright
Measurement indicators remain stable even in harsh
environments.

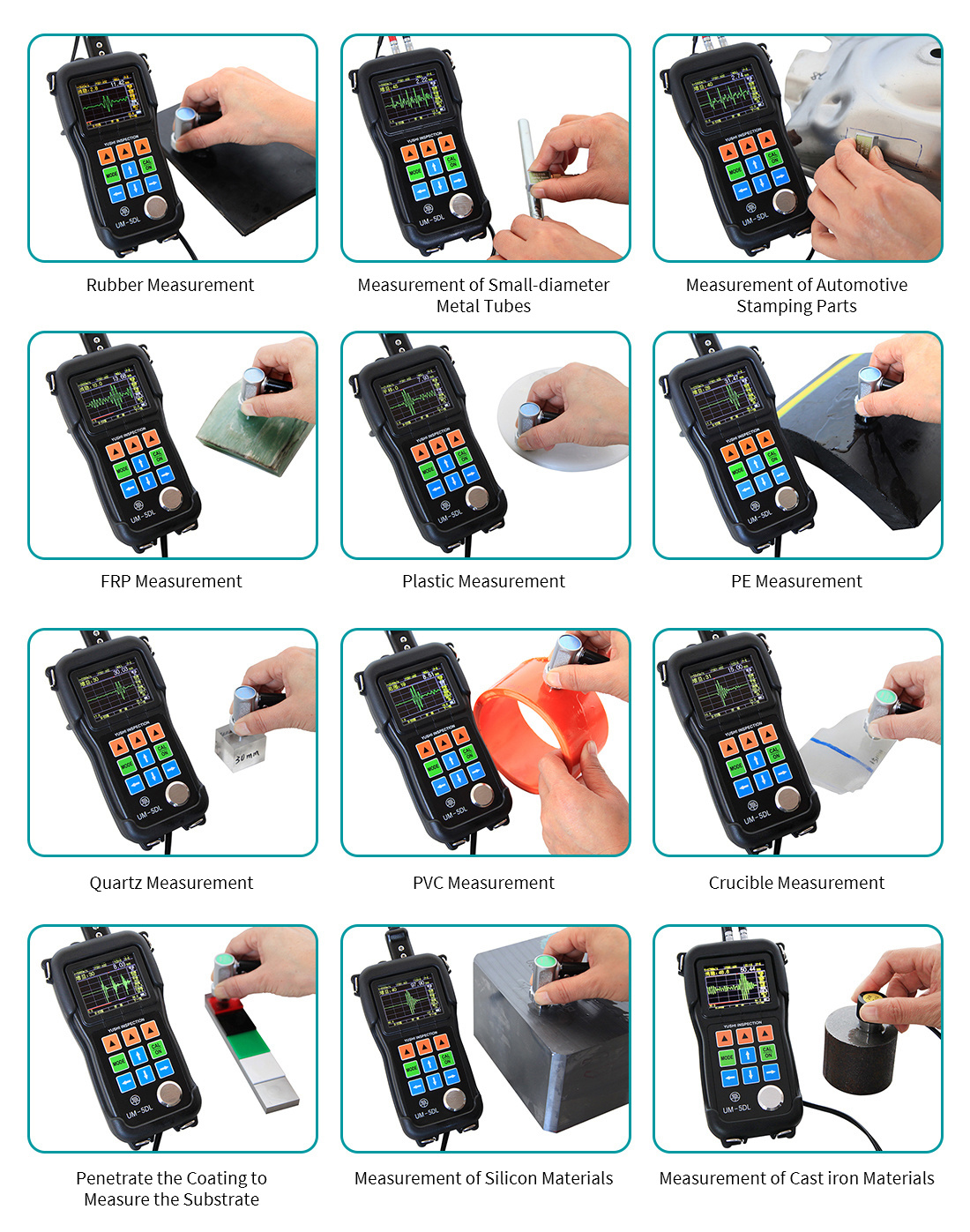

Measurable Materials
Steel, copper, aluminum, PVC, glass, etc.
-

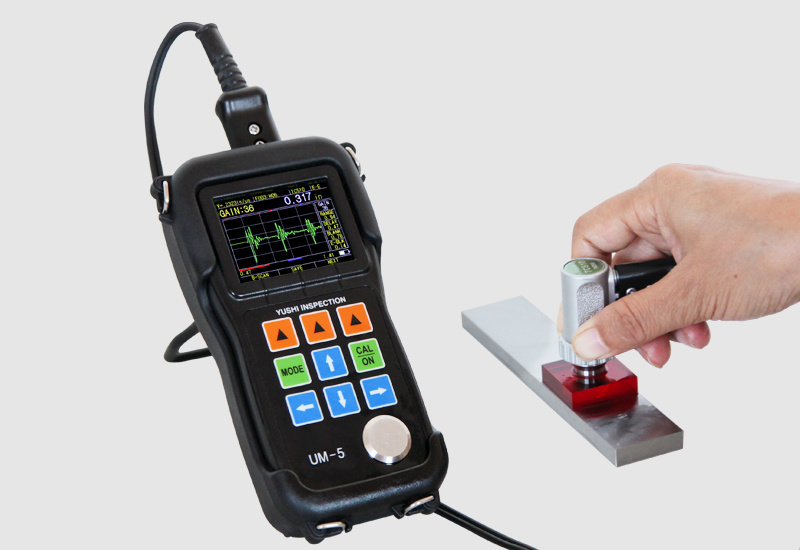

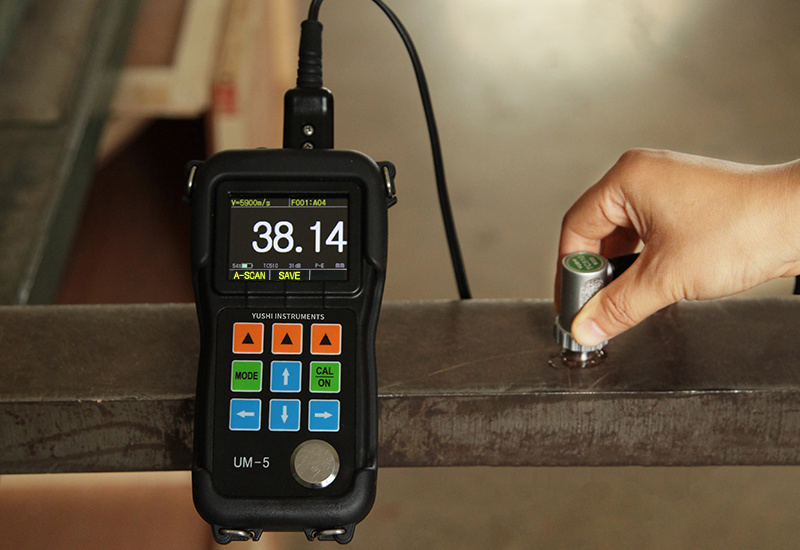

UM-5 Series - Field Test Application
-
UM-5 Series - Technical Specifications
Display Screen 2.4-inch (320×240 pixels) color LCD screen Working Principle Uses ultrasonic pulse-echo method and echo-echo method with dual crystal transducer Measurement Range 0.5-508 mm (0.025-20.00 inches) depending on the probe used, material, and surface conditions Measurement Resolution 0.01 or 0.1 mm (0.001 or 0.01 in), selectable across the entire measurement range Unit Millimeters or inches Gain Real-time adjustable Display Mode Thickness value mode, minimum/maximum value capture mode, difference/thinning rate mode V-path Correction Automatic V-path correction, compensating for the non-linearity of the dual crystal transducer Measurement Update Rate 4Hz, 8Hz, 16Hz selectable Material Sound Velocity Range 500~9999 m/s, 0.0197~0.3937 in/us Alarm Settings Maximum and minimum value alarms, dynamically changing the thickness reading color when alarming Working Language Multiple languages such as Chinese, English, Japanese, French, and German are selectable Working Power Supply Two 1.5V AA batteries, standby time 24 hours Instrument Shutdown Optional automatic shutdown after 5, 10, or 20 minutes of inactivity, or manual shutdown only Operating Temperature -10℃~+50℃ Dimensions 153mm×76mm×37mm (H×W×D) Weight 280g including batteries UM-5 Series - Probe Table
Model PT08 TC510 TC550 ZT12 PT06 PT04 GT12 Type Standard Standard Configuration Composite Crystal Coarse Crystal (Cast Iron) Small Diameter Tube Fingertip High Temperature Frequency 5MHz 5MHz 5MHz 2MHz 7.5MHz 10MHz 5MHz Contact Diameter 11mm 13.5mm 13.5mm 17mm 8.7mm 7.0mm 15mm Measurement Range 0.8-100.0mm 1.2-200.0mm 1.0-200.0mm 4.0-508.0mm 0.8-30.0mm 0.7-12.0mm 4.0-80.0mm Allowable Temperature -10~60℃ -10~70℃ -10~70℃ -10~70℃ -10~70℃ -10~70℃ -20~480℃ UM-5 Series - Parameter Comparison
Function UM-5 UM-5D UM-5DL Color Screen √ √ √ Real-time A-SCAN √ √ √ Real-time B-SCAN √ √ √ Adjustable Gain, Gate √ √ √ Blanking Function √ √ √ Penetrate Coating Function × √ √ Data Storage × × √ √ DataView Software × × √ √ -
UM-5 Series - Standard Configuration
● Thickness Gauge Main Unit ● Instruction Manual ● Couplant ● Certificate of Conformity ● Probe (with Test Report) ● Warranty Card ● Probe Cable ● Packing List ● 5# Alkaline Battery ● Communication Cable ● Sheath ● Communication CD ● Product Packaging Box ● Factory Calibration Certificate
