UM-3 Precision Ultrasonic Thickness Gauge

Key words:

Product Classification:

Precision Ultrasonic Thickness Gauge

Telephone:

+8618640030218

Related Accessories

Sample Download

Product Features
Applications
Technical Parameter
Standard Configuration

Basic Characteristics

304 Stainless Steel Casing, Aesthetic and Durable
Standard configuration includes a right-angle Microdot connector.
Corundum Protective Surface, Wear-Resistant
Standard configuration includes a right-angle Microdot connector.

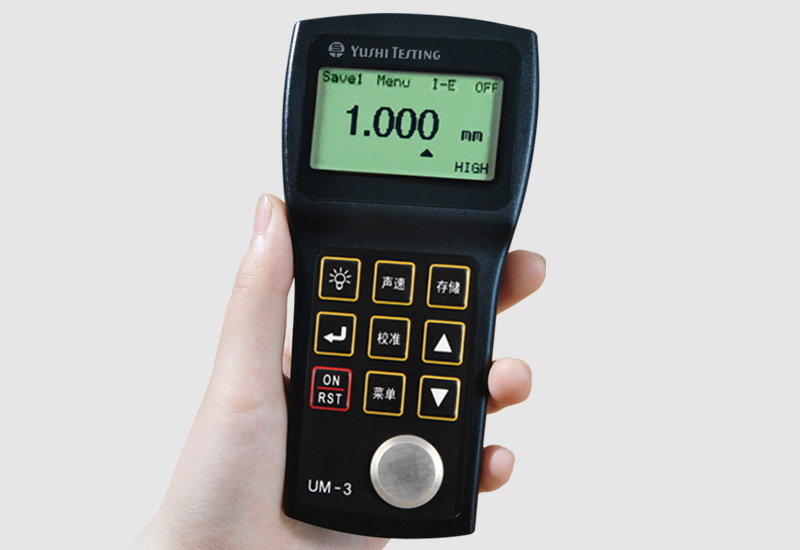

Appearance Characteristics

Ergonomic Design
Comfortable to hold, and won’t cause fatigue even after prolonged use.
Corrosion-resistant, fatigue-resistant, good mechanical properties
Resistant to acid and alkali chemical corrosion, high impact strength, good elasticity, toughness, and ductility.

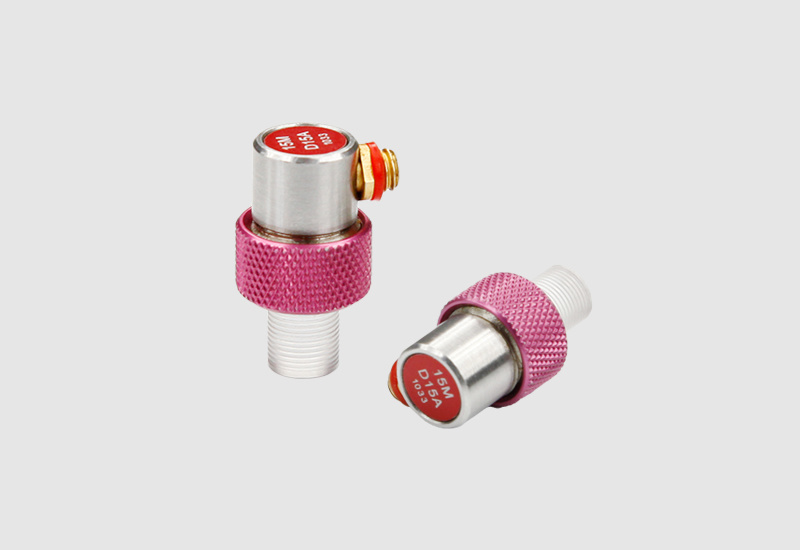

Standard single crystal delay block probe

Probe and cable separate design
Convenient for purchasing consumables
Probe Details
Chip: Composite chip
Delay block: Imide material
Probe shell: 304 stainless steel + zinc-aluminum alloy

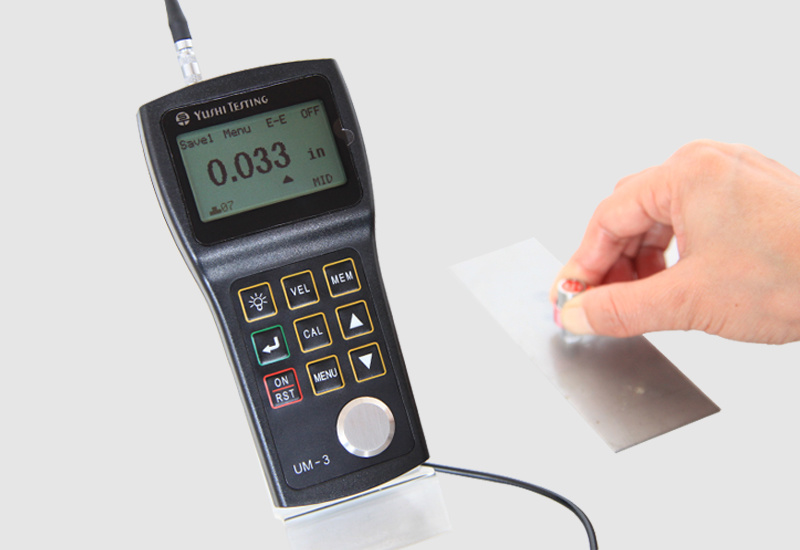

Application Scenarios

Copper door measurement
Accuracy 0.001mm

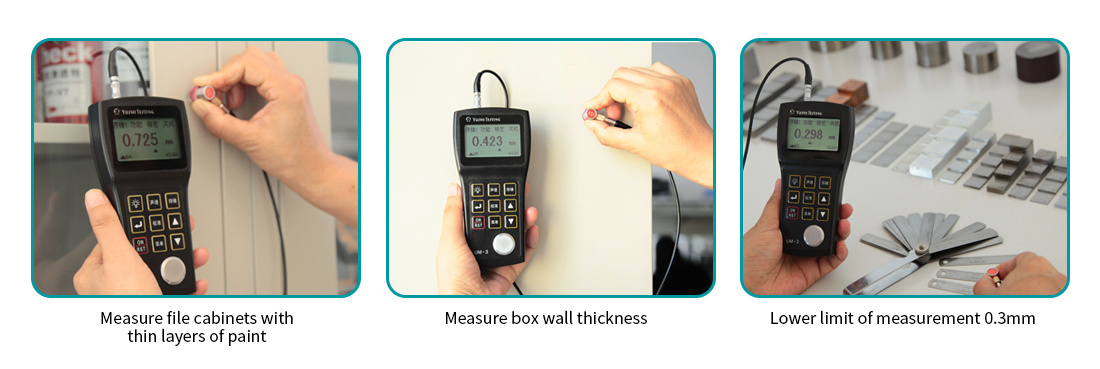

UM-3-Actual Measurement Application

UM-3-Technical Parameters

Display Screen	128×64 Dot Matrix LCD Display (EL Backlight)
Working Principle	Using single crystal delay probe interface wave-echo method and echo-echo method
Precision Mode Measurement Range	0.3mm~10mm
Normal Mode Measurement Range	1.5mm~20mm
Display Error	Precision Mode ±0.01 H≤3mm, ±0.05 3Normal Mode ±0.05 H<10mm, ±(0.5%H+0.01)H≥10mm Note: H is the actual thickness of the measured object
Display Resolution	Millimeter: 0.001, 0.01, 0.1 Inch: 0.0001, 0.001, 0.01
Unit	Millimeter or Inch
Measurement Refresh Frequency	4Hz during regular measurement, 25Hz during minimum value scanning
Material Sound Speed Range	1000~9999 m/s or 0.0394~0.3937 in/us
Storage Function	Divided into 5 arrays, can store 500 thickness values
Delete Function	Delete suspicious data in the file, can also delete all stored data to store new values
Alarm Function	Can set thickness limits, with alarm sound prompt for measurements outside the limits
Sound Speed Storage	Can store sound speeds of 5 different materials
Working Language	Can choose Chinese or English
Communication Interface	USB interface or RS232 serial port (optional)
Application Software	UMView software for data transmission, storage, analysis, and document editing (optional)
Power Supply	Two 1.5V AA batteries, with low voltage prompt when power is insufficient
Operating Time	Alkaline batteries can be used for 200 hours (without backlight)
Automatic Shutdown	Automatically shuts down after 5 minutes of inactivity
Working Temperature	-10℃~+50℃
Size	149mm×73mm×32mm(H×W×D)
Weight	210g (including battery)

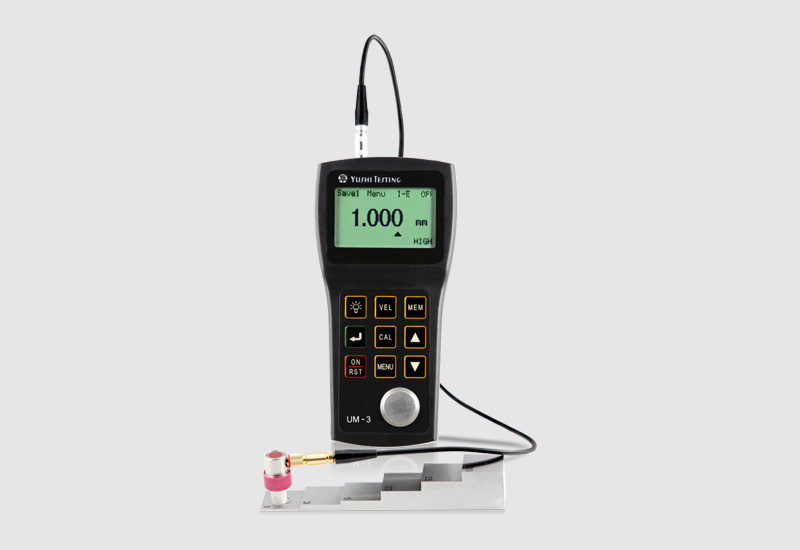

UM-3-Standard Configuration

● Thickness Gauge Main Unit	● User Manual
● Couplant	● Certificate of Conformity
● Probe (including Test Report)	● Warranty Card
● Single Crystal Probe Cable	● Packing List
● No. 5 Alkaline Battery	● Factory Calibration Certificate
● Product Packaging Box

UM-3-Optional Accessories

● Single Crystal Probe	● Standard Test Block
● Probe Cable	● Rubber Sleeve
● Delay Block	● Communication Options
