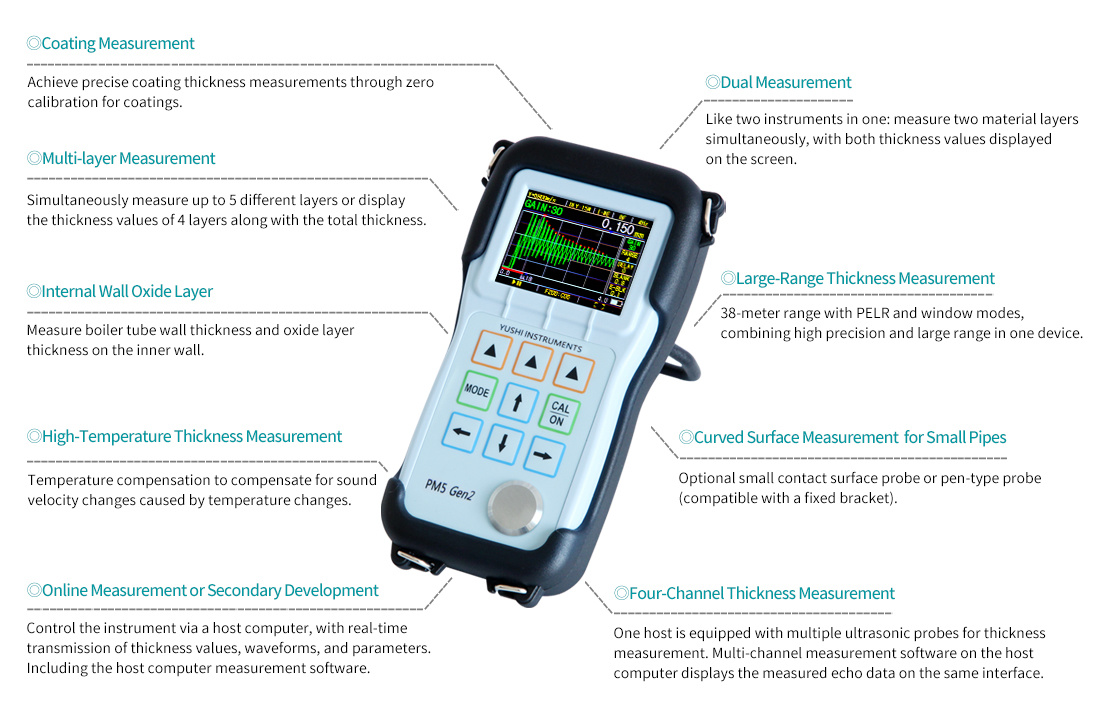

PM5 Gen2 Multifunctional Ultrasonic Thickness Gauge
Key words:
Product Classification:
- Product Features
- Applications
- Technical Parameter
- Standard Configuration
-
IP67 dustproof and waterproof
Passed the GB/T 4208 standard IP67 test
Can be used for a short time in water 1 meter deep, suitable for harsh environments such as water and sweat.
Can prevent dust from entering
Overall prevention of contact, protection against dust penetration.

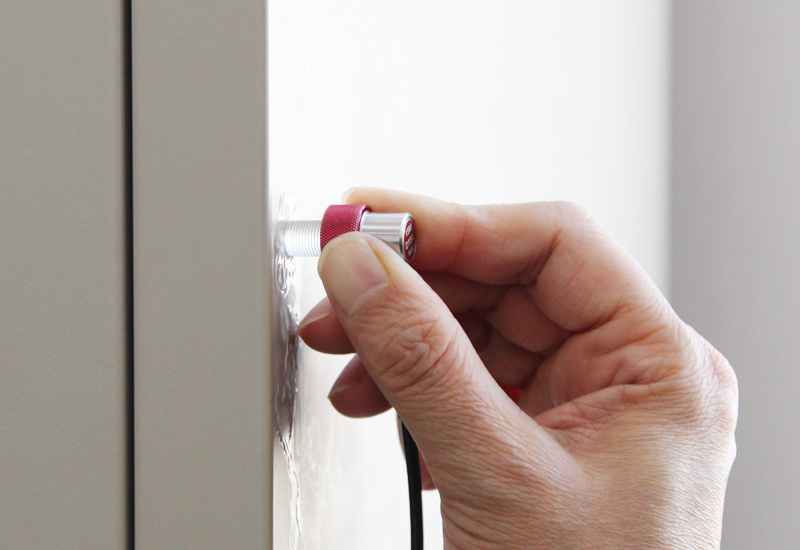

Standard probe
Standard D15A single element delay block probe
Can measure the thickness of most materials
Optional various other probes
Delay block probe, contact probe, pen probe, immersion probe, etc.For measuring the thickness of high-temperature or curved materials
Temperature compensation function
Can manually input the temperature value of the calibration block and the actual temperature value during measurement.The actual temperature value.
Other auxiliary options
High-temperature delay block probe + directional capture,High-speed measurement and synchronous display + automatic freeze

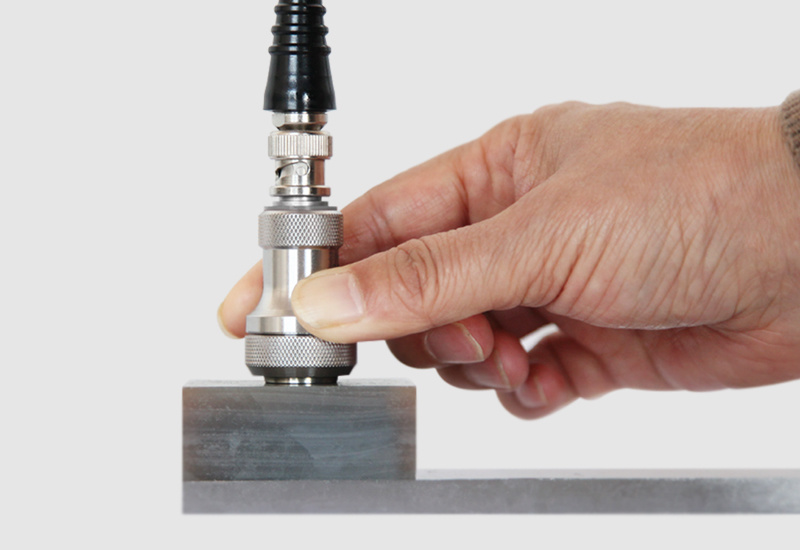

Penetration function for thick coatings
Use a dedicated probe to penetrate thick coatings
Can penetrate coatings up to 20mm or even thicker to accurately measure metal thickness.
Suitable for use on flat surfaces, curved surfaces, or pipes

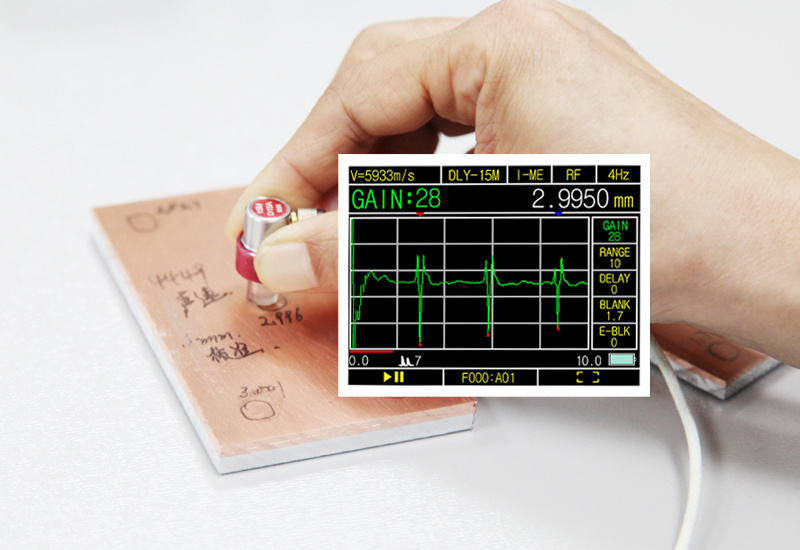

Can make detection work faster and more efficient.High resolution options
Display resolution up to 0.0001mm
Optional (I-ME mode)
Measurement units include millimeters, inches, microns, mils
Can be selected based on the material, geometry, surface condition, and temperature of the workpiece being measured.

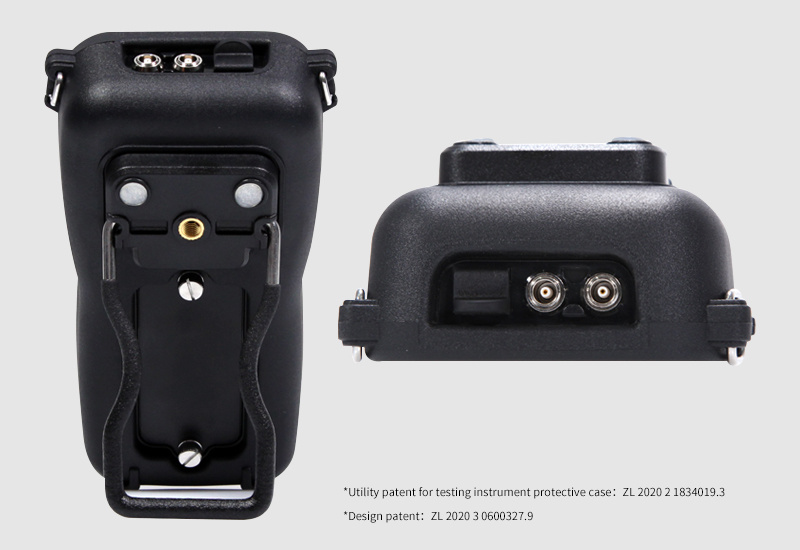

Standard rubber protective case
Patent protective case
Freeing one hand during measurement, convenient for measuring.
Screw that won't come loose
Has high flexibility and low cost advantages, not easy to lose, convenient for battery replacement.
-

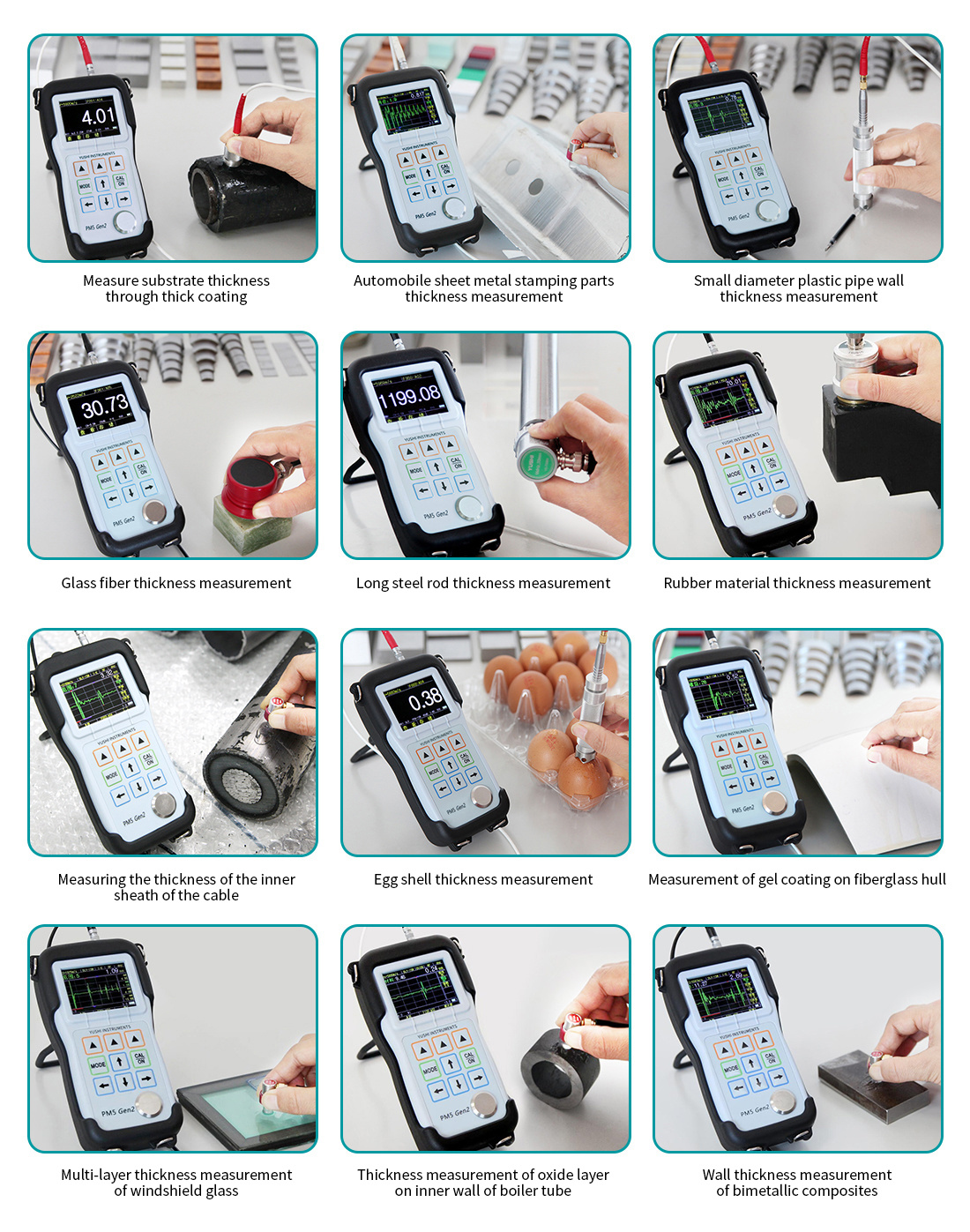

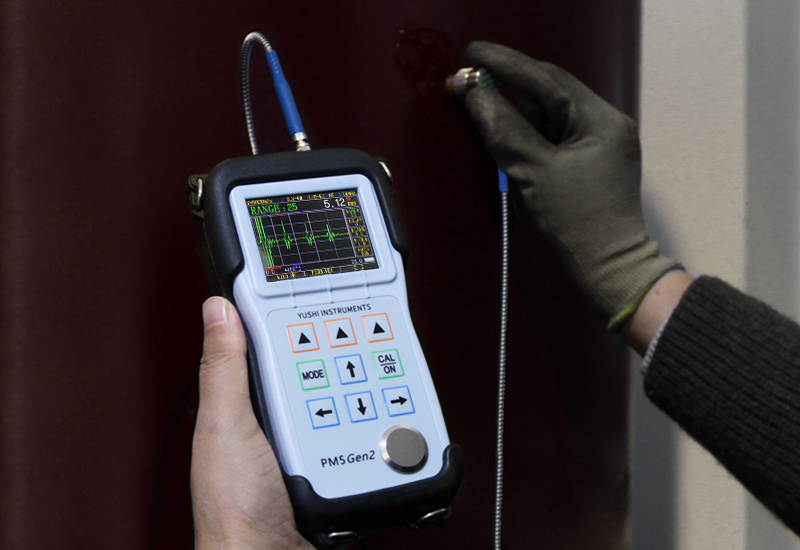

PM5 Gen2 - Practical Application
-
PM5 Gen2-Technical Parameters
Working Language P-E (Pulse Echo Method): Measures the time between the initial pulse and the first bottom echo.
I-E (Interface Wave Echo Method): Measures the time between the delayed block echo and the first bottom echo.
I-E-E (Echo Echo Method): Measures the time between two consecutive bottom echoes.
I-ME (Multiple Echo Method): Measures the time between multiple bottom echoes.
E-EV (Double Echo Verification): Validates the echo pattern, requiring three reflected echoes.
COAT Coating Mode (Option): Measurement mode specifically for coatings.
OXIDE Oxide Layer Mode (Option): Dedicated measurement for the thickness of the oxide layer on the inner wall of boiler tubes.
PEL R Large Range Mode (Option): This mode should be selected when the range exceeds the material thickness.
Probe Type Supports delay line probes, contact probes, protective film probes, pen probes, and immersion probes. Calibration Method Zero calibration probe, zero calibration coating, calibration sound speed, single point calibration, two-point calibration, set sound speed, material sound speed table. Display Error ±0.01 H≤3mm
±0.05 3＜H＜10mm
±(0.5%H+0.01) H≥10mm Note: H is the thickness of the measured material.
Thickness Range 0.01mm to 38m, depending on the measured material, probe, surface conditions, temperature, and selected configuration.
0.15mm to 30mm (Standard D15A probe, steel)
Material Sound Speed Range 310 - 18699m/s, and can reverse measure sound speed for known thickness objects. Resolution Low Resolution: 0.1mm
Standard Resolution: 0.01mm
High Resolution: 0.001mm
Ultra High Resolution (Option): 0.0001mm or 0.1um (I-ME mode)
Probe Frequency Range 0.5MHz to 20MHz
General Specification
Measurement Mode Available in Chinese and English.
Measurement Unit Millimeters, inches, micrometers, mils. Measurement Update Rate 4Hz, 8Hz, 16Hz available. Instrument Shutdown Can be set to automatically shut down after 5, 10, or 20 minutes of inactivity, or can only be manually shut down.
Temperature Range –10℃ to 50℃
Instrument Shell The shell and connectors are waterproof sealed, meeting IP67 waterproof and dustproof standards. Size 153mm×76mm×37mm (H×W×D)
Weight Including battery 280g
Working Power Supply Two AA batteries, standby time greater than 24 hours. Display
Display Screen 2.4 inch (320×240 pixel) TFT color display. Rectification Mode Radio frequency, inverse radio frequency, full wave, positive half wave, negative half wave. View Mode A-scan, B-scan, numerical, maximum value capture, differential. Built-in Data Logger Option
Data Storage Identifies, stores, retrieves, clears, and transmits thickness readings, waveform images, and instrument configurations through a standard USB port. Capacity Can store 100,000 thickness values, 400 parameter configuration files, equipped with upper computer software and USB drive. Real-time Communication Option Upper computer controls the instrument, real-time transmission of thickness values, waveforms, parameters, including upper computer measurement software. Suitable for online measurement and secondary development. Multi-channel Option Includes upper computer multi-channel measurement software, mainly used for automated thickness measurement.
-
PM5 Gen2 - Standard Configuration
Serial Number Name
Unit Quantity Remarks 1 Thickness Gauge Main Unit Set 1 2 Coupling Agent Bottle 1 3 Probe (including test report) Piece 1 4 Probe Cable Strip 1 5 No. 5 Alkaline Battery Piece 2 6 Sheath Piece 1 7 Communication Cable Strip 1 8 Communication USB Drive Piece 1 9 Product Packaging Box Piece 1 10 User Manual Copy 1 11 Certificate of Conformity Copy 1 12 Warranty Card Copy 1 13 Packing List Copy 1 14 Factory Calibration Certificate Copy 1
