CM10 Series Coating Thickness Gauge
Key words:
Product Classification:
- Product Features
- Applications
- Technical Parameter
- Standard Configuration
-

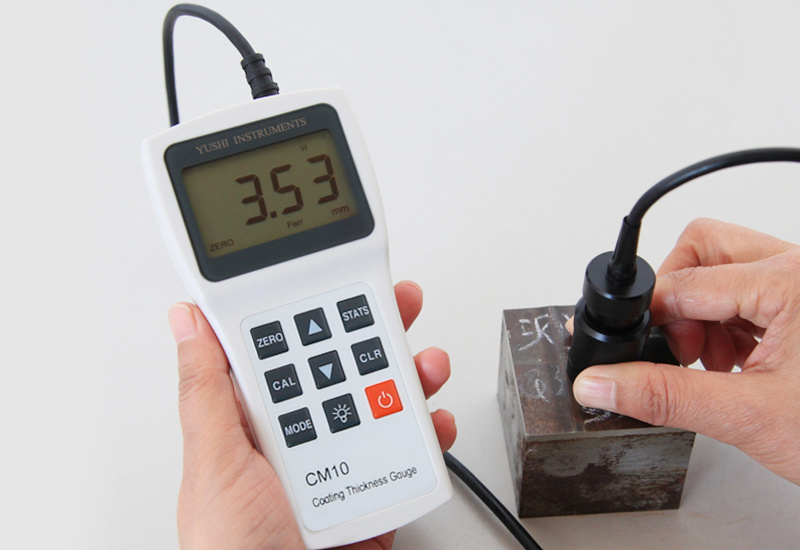

Instrument Appearance

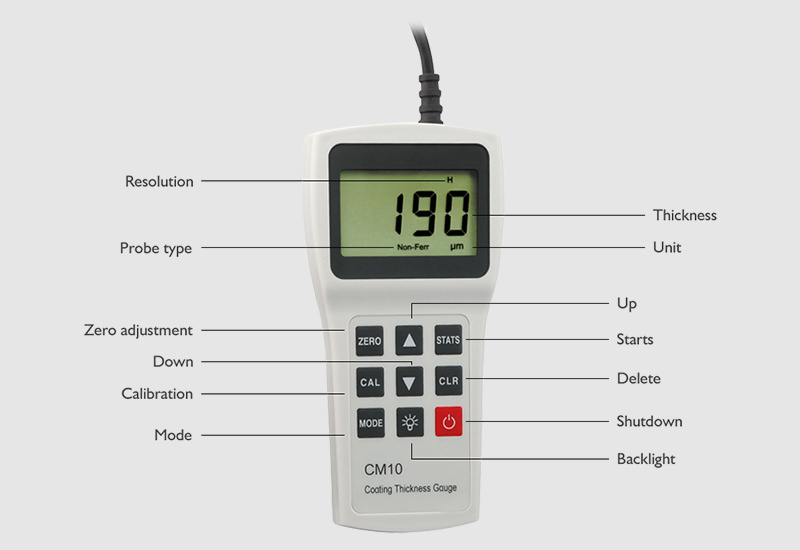

Display Screen
High contrast segment LCD screen, LED backlight.
Probe Model

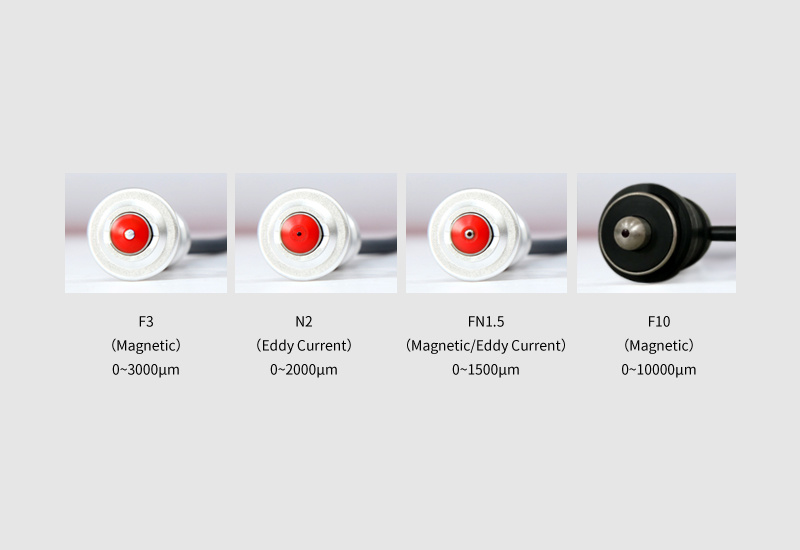

The CM10 coating thickness gauge has four models:
CM10F: Equipped with magnetic F probe, measurement upper limit 3000um
CM10N: Equipped with eddy current N probe, measurement upper limit 2000um
CM10FN: Equipped with magnetic/eddy current integrated FN probe, measurement upper limit 1500um
CM10FH: Equipped with large range magnetic FH probe, measurement upper limit 10000umInstrument Calibration

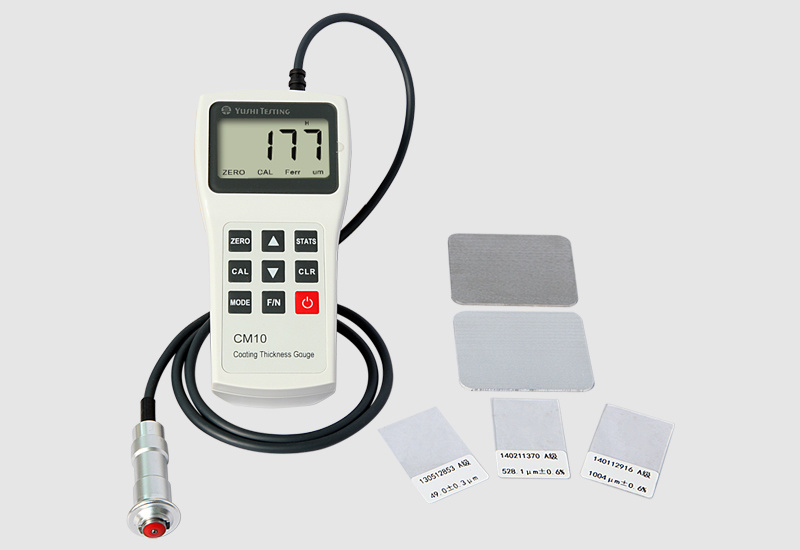

Standard Test Piece Calibration

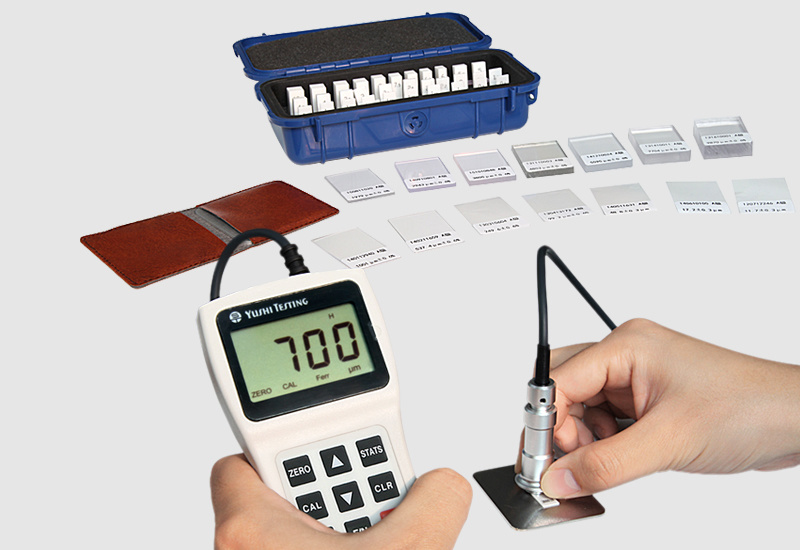

The CM10 coating thickness gauge is calibrated with 26 standard test pieces before leaving the factory.
Probe Cable
Integrated design of probe and instrument
The probe cable uses Japanese cable, which is soft and not easy to break.Application Display
Intuitive Readings, Easy Operation
Large font display, stable readings, easy operation.
Communication Software
Standard CMView Communication Software
Standard configuration is right-angle Microdot connector -

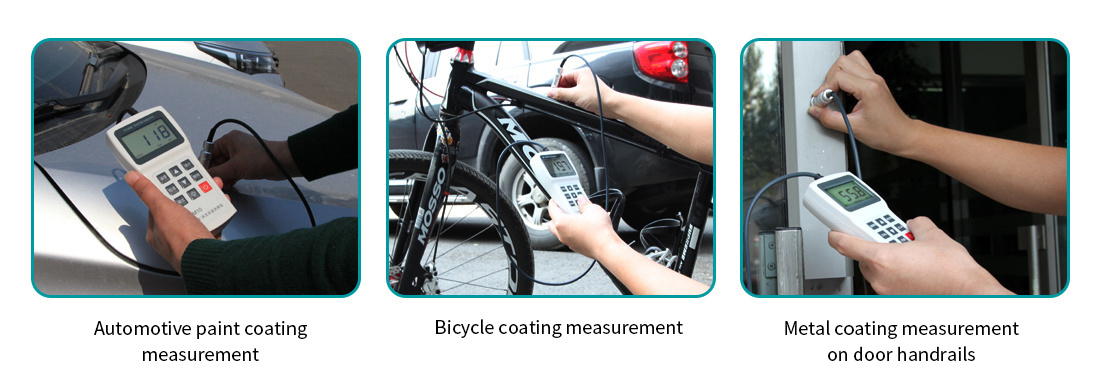

CM10 Series - Practical Application
-
CM10 Series - Technical Parameters
Model
CM10F
CM10FH
CM10N
CM10FN
Working Principle
Magnetic Induction
Magnetic Induction
Eddy Current
Magnetic Eddy Current Integrated
Measurement Range (um)
0-3000
0-10000
0-2000
0-1500
Lower Limit Resolution (um)
0.1
0.1
0.1
0.1
Accuracy Error (um)
±(2%H+2)
±(2%H+10)
±(2%H+2)
±(2%H+2)
Testing Conditions
(mm)
Minimum Curvature Radius
5
10
5
5
Minimum Area Diameter
20
40
20
20
Matrix Critical Thickness
0.5
2
0.5
0.5
Display
High Contrast Segment Code LCD Screen (LED Backlight)
Statistical Function
Number of Measurements, Maximum Value, Minimum Value, Average Value, Standard Deviation
Calibration Method
Single Point, Two Point Calibration
Operating Temperature
-10℃～+50℃, can reach -20℃ with special requirements
Auto Shutoff
Automatically shuts off after 3 minutes of inactivity
Power Supply
Two 1.5V AA batteries, with low voltage prompt when battery is low
Weight
200g including batteries
Size
149mm×73mm×32mm (H×W×D)
-
CM10 Series - Standard Configuration
● CM10 Coating Thickness Gauge ● Calibration Zero Piece ● Calibration Thickness Piece ● Operation Manual ● USB Communication Cable ● Probe (integrated with the instrument) ● Two AA Batteries ● Instrument Case ● Certificate of Conformity ● Packing List ● Warranty Card ● Communication CD
