CM30 Series Coating Thickness Gauge
Key words:
Product Classification:
- Product Features
- Applications
- Technical Parameter
- Standard Configuration
-
Product Features
Screen Display
Color Screen with Large Font

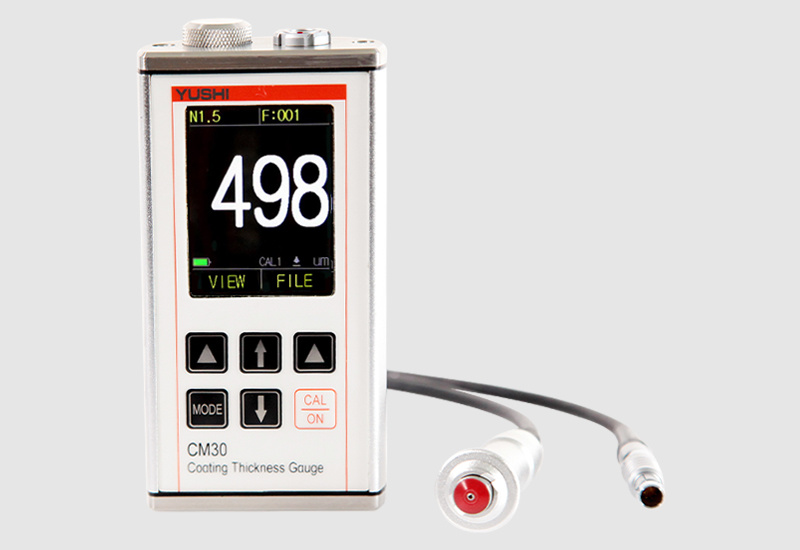

Instrument Probe Split Design
One main unit can match four types of probes
Probe Model
The CM30 coating thickness gauge has four models:
CM30F: Equipped with magnetic F probe, measurement upper limit 3000um
CM30N: Equipped with eddy current N probe, measurement upper limit 2000um
CM30FN: Equipped with magnetic/eddy current integrated FN probe, measurement upper limit 1500um
CM30FH: Equipped with large range magnetic FH probe, measurement upper limit 10000umAppearance Features
Meticulously crafted all-metal shell

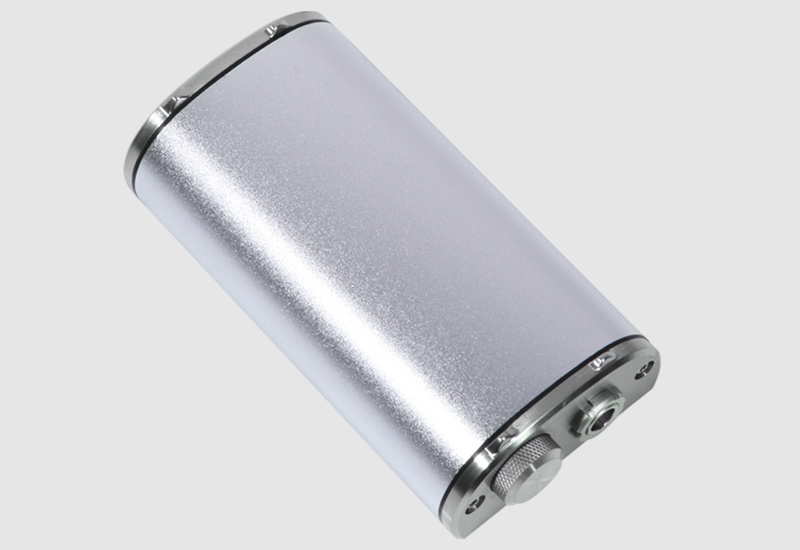

Aluminum stretch one-piece molding process, anodized sandblasting treatment, sturdy and beautiful.
The back of the body adopts an arc design, providing ergonomic comfort.
The screen window area is processed by CNC, with precise positioning.
The upper and lower covers of the instrument have added four support points for stable placement.
Interface Display
Three measurement interfaces

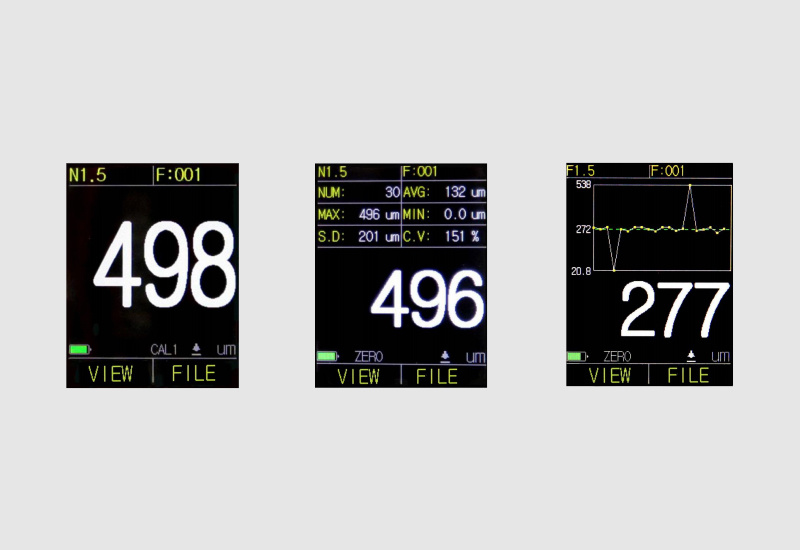

These are the numerical interface, statistical interface, and trend graph interface.
Statistical Interface
Include measurement count, MAX value, MIN value, average value, standard deviation, and coefficient of variation.IP68 Waterproof and Dustproof
Multiple Details Processing
The CM30 is waterproof and dustproof from the body to the connectors.
Underwater Testing
Tested underwater at a depth of 2 meters for 30 minutes, capable of withstanding harsh working environments.
File Storage Function
Standard CMView Communication Software
Can store 200,000 measurement values, with 200 file numbers. Each file can store 1,000 measurement values and corresponding statistical data, and the file number can be switched as needed.User Debugging Function
Two Methods

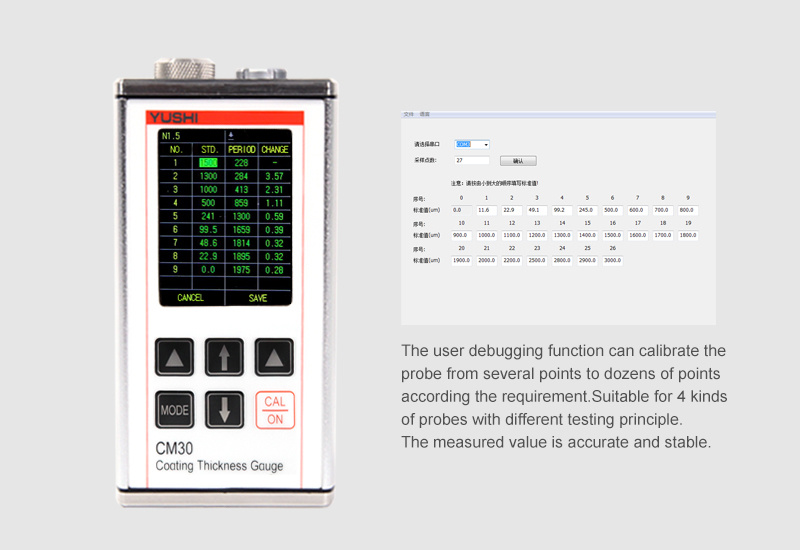

Can be debugged manually or through host computer software.
Test Report
Strict Factory Testing

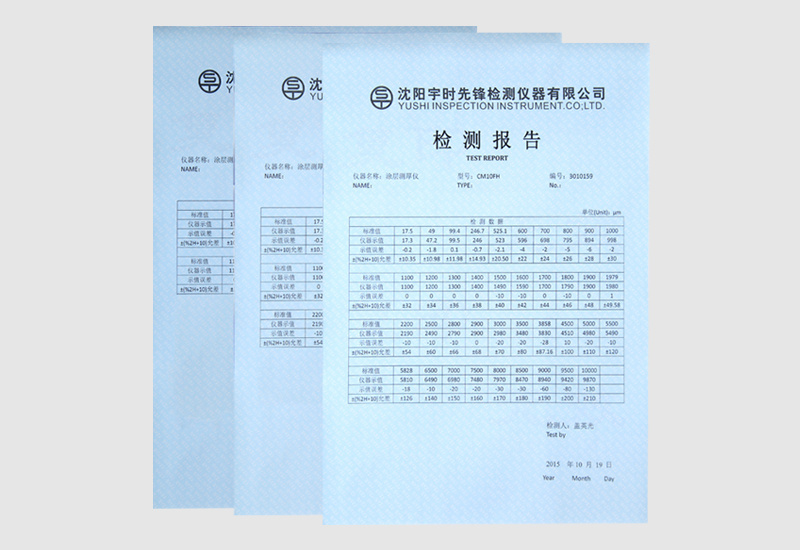

Each instrument is strictly tested before leaving the factory, and a test report is attached randomly.Application Display
Intuitive Reading, Convenient Operation

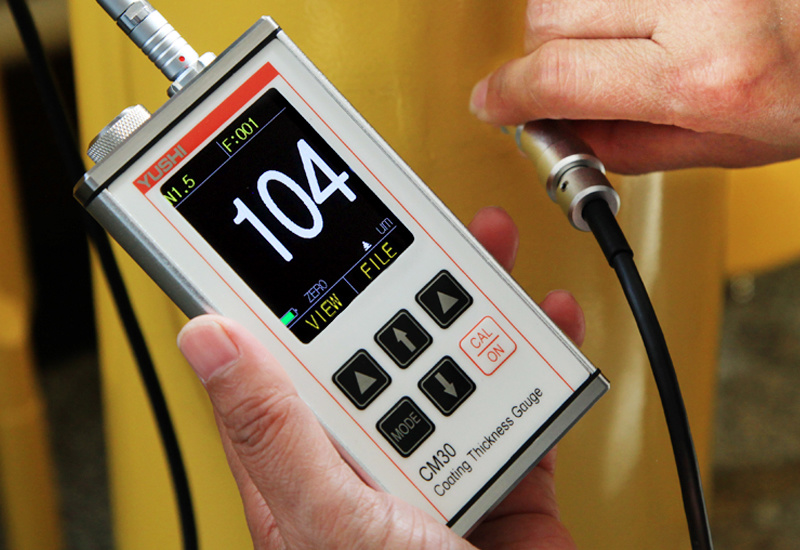

Color screen with large font display, stable readings, and convenient operation.
-

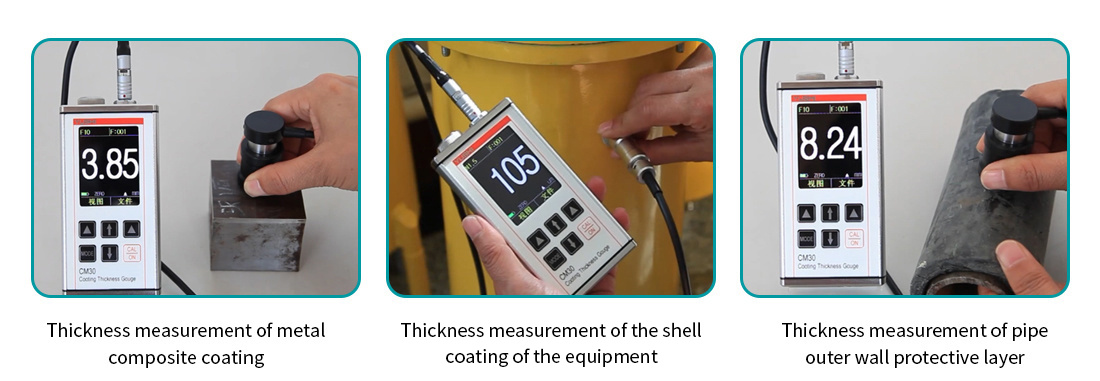

CM30 Series - Practical Application
-
CM30 Series - Technical Parameters
Instrument Model
CM30F
CM30FH
CM30N
CM30FN
Probe Model
F3
F10
N2
FN1.5
Working Principle
Magnetic Induction
Magnetic Induction
Eddy Current
Magnetic Eddy Current Integrated
Measurement Range (um)
0-3000
0-10000
0-2000
0-1500
Minimum Resolution (um)
0.1
0.1
0.1
0.1
Accuracy Error (um)
±(2%H+2)
±(2%H+10)
±(2%H+2)
±(2%H+2)
Measure
Test
Item
Piece
Minimum Curvature Radius (mm)
5
10
5
5
Minimum Area Diameter (mm)
Φ20
Φ40
Φ20
Φ20
Matrix Critical Thickness (mm)
0.5
2
0.5
0.2
Display Screen
2.4 inch (320×240) IPS Color LCD Screen
Working Principle
Magnetic/Eddy Current (Non-Magnetic)
Unit
Metric (Micron, Millimeter) / Imperial (Mil)
Display Mode
Large Value Mode, Statistical Interface Mode, Trend Chart Mode
Language
Chinese/English selectable
Storage Capacity
200,000 measurement values (200 groups of files, 1000 per group) and 6 statistical data
Backlight
6 levels adjustable (Automatic, 100%, 80%, 60%, 40%, 20%)
Calibration Method
Zero Point, One Point, Two Point Calibration
Limit Setting
Upper/Lower Limit Overrun Alarm, measurement value displayed in red during alarm
Operating Environment
-10 to +50℃ No strong magnetic field environment
Waterproof Rating
Shell Protection Level IP68
Shutdown
Automatically shut down after 3 minutes of inactivity or manual shutdown
Communication Interface
USB 2.0 Full Speed Interface
Power Supply
Two 1.5V AA batteries
Operating Time
20 hours
Weight
317g (excluding probe and batteries)
Size
121.5mm*63.5mm*31.5mm (H*W*D)
-
CM30 Series - Standard Configuration
● CM30 Coating Thickness Gauge ● Alkaline Battery (Size 5) ● Zero Calibration Plate ● USB Communication Cable ● Communication Disc ● Probe ● Packing Document ● Instrument Case ● Calibration Thickness Plate CM30 Series - Optional Accessories
● F3 Probe (including Calibration Plate) ● N2 Probe (including Calibration Plate) ● FN1.5 Probe (including Calibration Plate) ● F10 Probe (including Calibration Plate) ● Iron Base Zero Calibration Plate ● Aluminum Base Zero Calibration Plate ● Calibration Thickness Plate (multiple thicknesses available)
