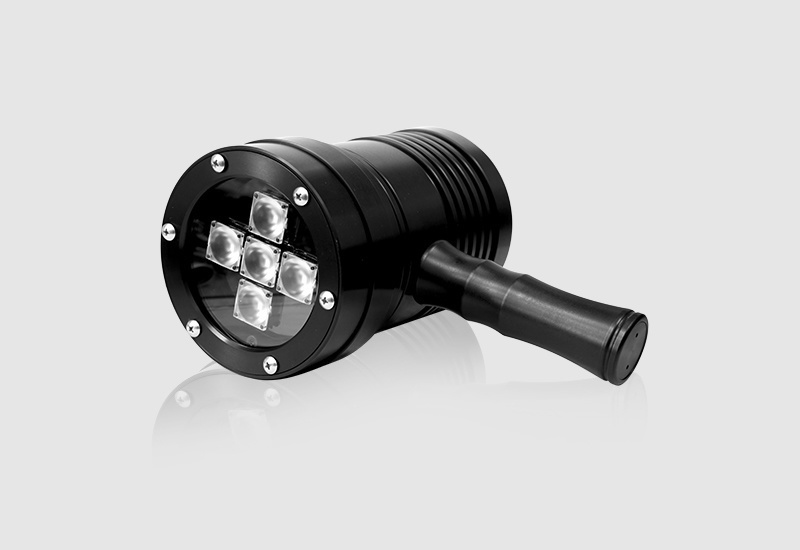

VM Series Handheld UV NDT Lamp

VM100: UV intensity ≥16000 uW/cm² at 38cm
VM100D: UV intensity ≥9000 uW/cm² at 38cm

Key words:

Telephone:

  • Product Features
  • Applications
  • Technical Parameter
  • Standard Configuration
  • Product Features



    Lamp Beads
    Japanese lamp beads with a usage time of up to 20,000 hours
    Ultraviolet Lens
    Finnish ultraviolet lens, uniform illumination, no flare, no blind spot

    Product Features



    365nm Wavelength UV-A
    No harmful UV-B and UV-C
    Fast Startup
    Reaches peak ultraviolet intensity immediately upon startup

    Ultraviolet Intensity at 38cm



    VM100≥16000μw/cm²
    VM100D≥9000μw/cm²

    Main Applications



    Fluorescent Penetrant Inspection
    Fluorescent Magnetic Particle Inspection
    Fluorescent Leak Detection
    Oil Stain Detection

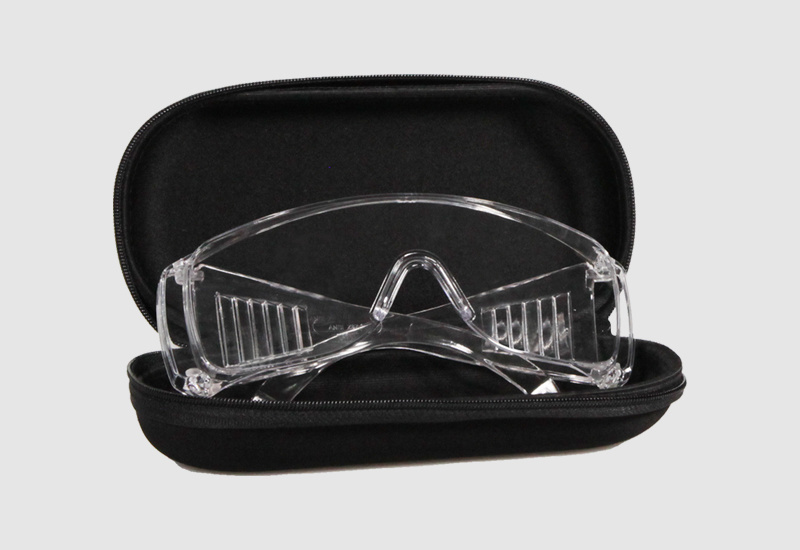

    Standard UV Protective Glasses



    Block Ultraviolet Rays

    Standard UV Protective Glasses Included

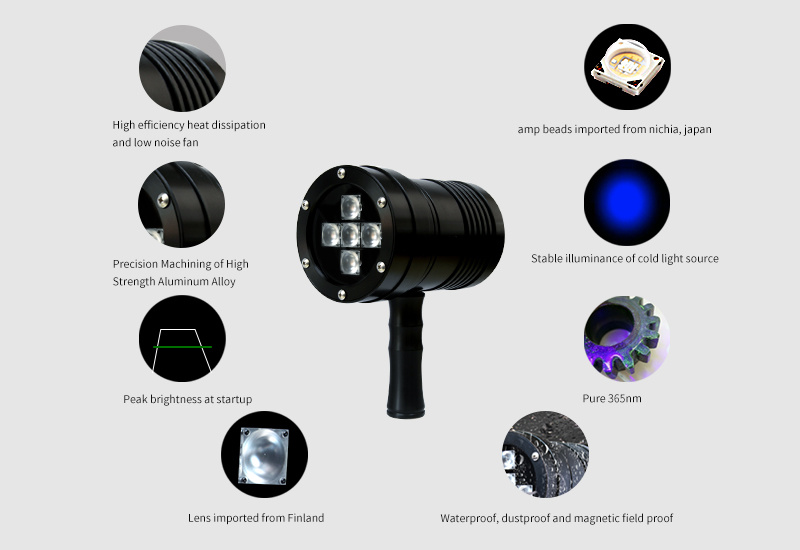

    Features and Performance
    This product uses high-power 365nm UV LED beads from NICHIA Corporation of Japan, with a positive spectrum containing no UV-B and UV-C components.
    The LED beads have a lifespan of up to 20,000 hours.
    High-power output, fast startup, reaching peak illuminance upon power-on.
    Low power consumption, high efficiency. Cold light source, low-temperature operation, stable illuminance output over time.
    The instrument housing is made of precision-machined 6061-T6 aluminum alloy. Surface oxidation treatment ensures durability and a long service life.
    Built-in heat sink and low-noise fan, with overall heat dissipation through the aluminum alloy housing. Allows for continuous, long-term use.
    Resistant to magnetic field interference; can be used in strong magnetic fields.
    The switch and sockets are located at the rear of the instrument for convenient use and to prevent accidental operation.
    The product has passed the standard IEC 60529 "Degree of Protection Provided by Enclosures (IP66)" test. Wide range of applications and reliable performance.

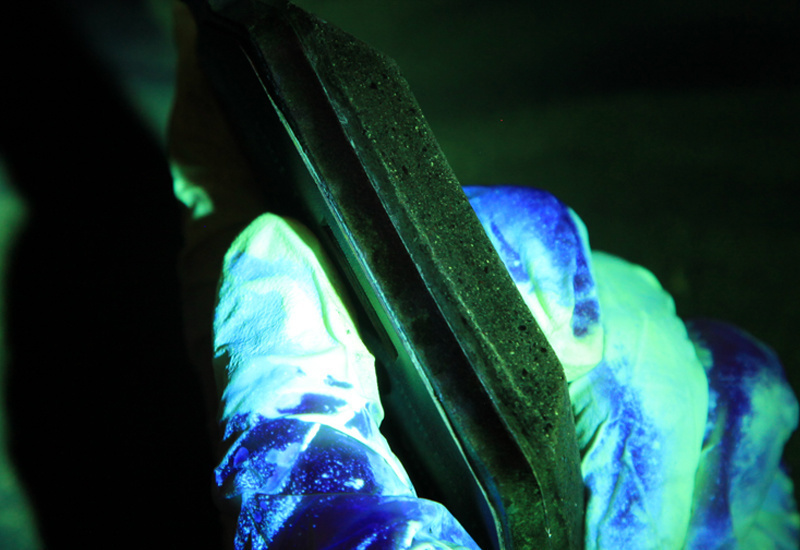

  • Handheld ultraviolet lamp - field application

  • Handheld UV Lamp - Technical Specifications

    Model VM100 VM100D
    UV intensity at 38cm ≥16000uW/cm² ≥9000uW/cm²
    Irradiation range at 38cm φ250mm φ200mm
    Visible light illuminance 10.89lux 9.21lux
    Power supply method AC power AC power or built-in battery pack
    Lamp beads 365nm UV LED lamp beads
    Number of lamp beads 5 4
    Input power 100-240V AC 50/60Hz 16.8V DC
    Battery model - 8pcs 3.7V 2600mAhlCR18650 built-in lithium battery
    Battery power supply working time - 7 hours
    Charging time - 4 hours
    Cooling system Built-in fan
    Lamp head diameter 120mm
    Light-transmitting window diameter 88mm
    Length 190mm
    Handle length 120mm
    Weight 1290g 1560g



  • Handheld UV Lamp - Standard Configuration

    Model VM100 VM100D
    Main unit 1 1
    Power cord 1
    Adapter   1
    Instrument case 1 1
    Safety glasses (with glasses case) 1 1
    Instruction manual 1 1
    Certificate of Conformity 1 1
    Warranty card 1 1
    Packing list 1 1



Related Accessories
