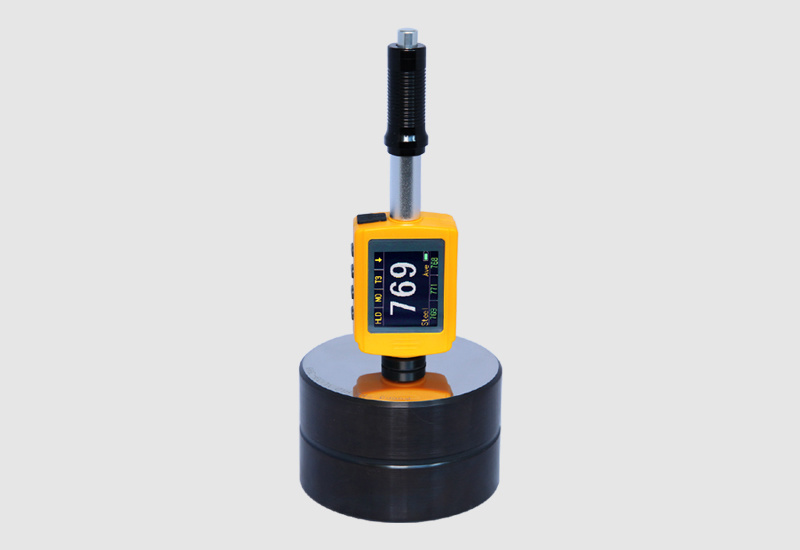

LM330 Leeb Hardness Tester
Key words:
Product Classification:
- Product Features
- Applications
- Technical Parameter
- Standard Configuration
-
Product Features
Pen-style, wireless design
Impact device and display screen combined into one
Color 1.77-inch display
Appearance Features

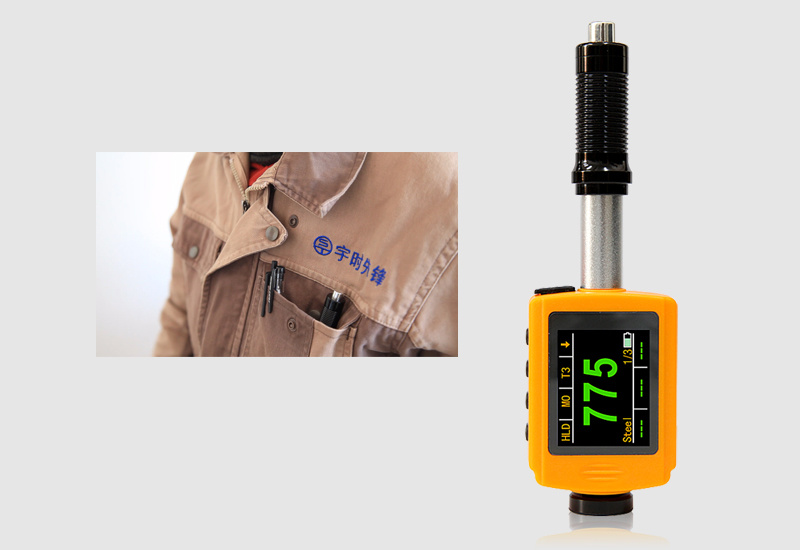

Compact and portable, can be directly placed in a pocket
Integrated design, no cable constraintsImpact Device

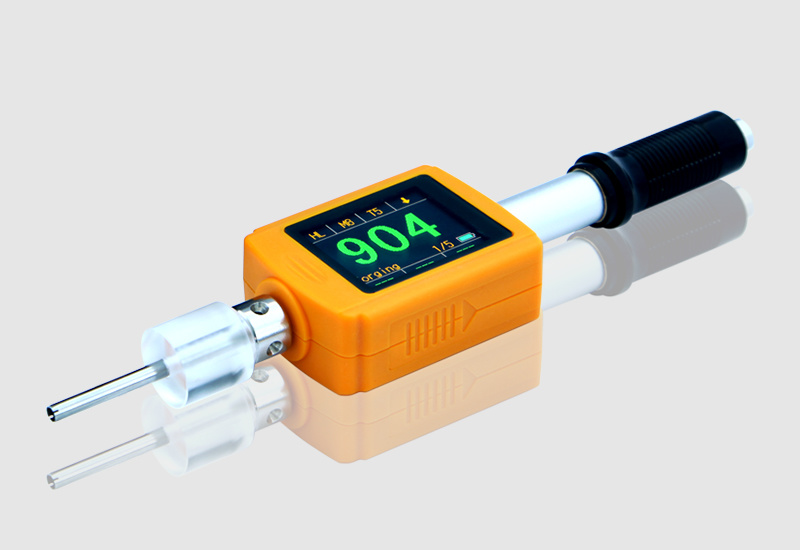

DL and D impact devices are interchangeable, dual-use
Functional Features
Six Hardness Scales
Rockwell C, Rockwell B, Vickers, Brinell, Shore, Leeb, and tensile strength
Measurement Directions
Vertically downward, diagonally downward, horizontal, diagonally upward, vertically upward (can automatically identify direction)Communication Software

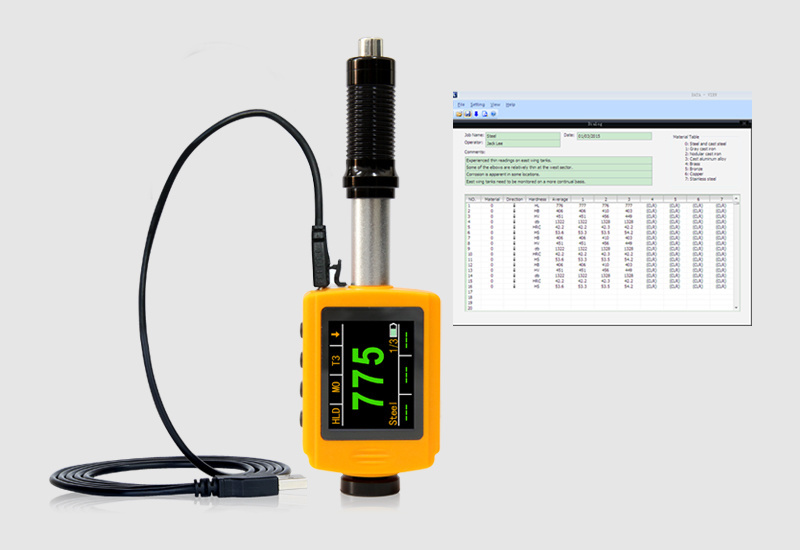

Standard LMView software
Can store 1000 sets of measurement values
-
LM330 - Measured Application
-
LM330 - Technical Parameters
Display Screen 1.77 inch Color TFT LCD Display Hardness Standard Leeb HL, Brinell HB, Rockwell HRB, Rockwell HRC, Vickers HV, Shore HS, Strength ob Measurement Range HLD(200-960) HRC(19.8-68.5) HRB(13.5-100) HB(30-651) HV (80-976) HS (26.4-99.5) ob (375-2639) Impact Device Standard D-type probe, replaceable DL-type adapter (optional) Display Error Error less than ±6 HLD (HLD=800), repeatability error less than 6 HLD (when HLD=800) Measurement Direction Supports vertical down, diagonal down, horizontal, diagonal up, vertical up, full angle Material Used Steel and cast steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy, copper-tin alloy, pure copper, forged steel, alloy tool steel Resolution 1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS, 1N/mm² Calibration User can calibrate by themselves Working Language Supports multiple languages including Chinese, English, Spanish, Japanese, Traditional Chinese, etc. Data Storage 1000 groups, each group can contain 6 measurement values, one average value and required parameters Interface USB interface for data transmission Application Software LMView software can manage, archive, print measurement data and other operations Power Supply Dry battery, No. 7 1.5V, with power indication, voltage 3.7V capacity 900mAh; low voltage indication when power is insufficient Auto Shutdown Automatically shuts down after 3 minutes of inactivity Working Temperature -10 to +50℃ Net Weight 110g (using D-type impact device), 125g (using DL-type impact device) Instrument Size 150mm×46mm×23mm (using D-type impact device), 204mm×46mm×23mm (using DL-type impact device) Standard Complies with GB/T 17394-1998, ASTM A956 standards -

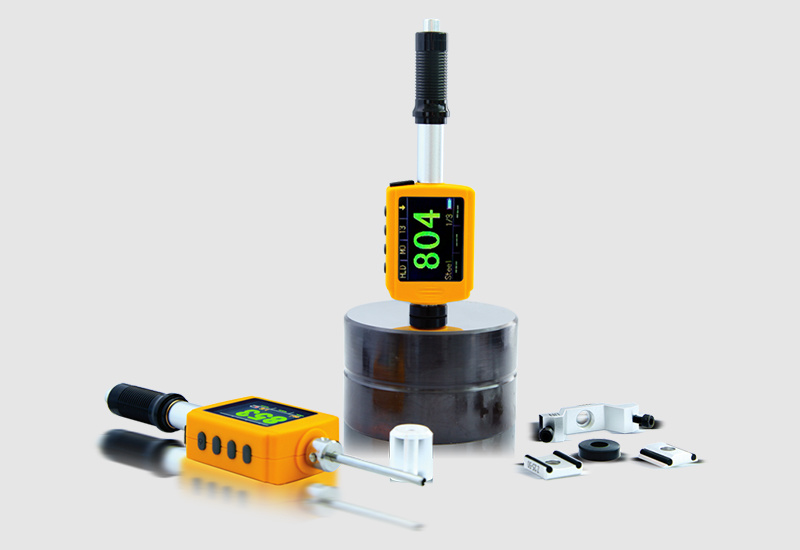

LM330 - Standard Configuration
● Host (with built-in D-type probe) ● Nylon Brush ● Communication CD ● Standard Leeb Hardness Block ● AAA Battery ● Instrument Case ● Small Support Ring ● USB Cable ● Packing Document LM330 - Optional Accessories
● DL Adapter ● Leeb Hardness Block ● Support Ring and Special Support Ring
