DM3000 Series Black and White Densitometer
Key words:
Product Classification:
- Product Features
- Applications
- Technical Parameter
- Standard Configuration
-

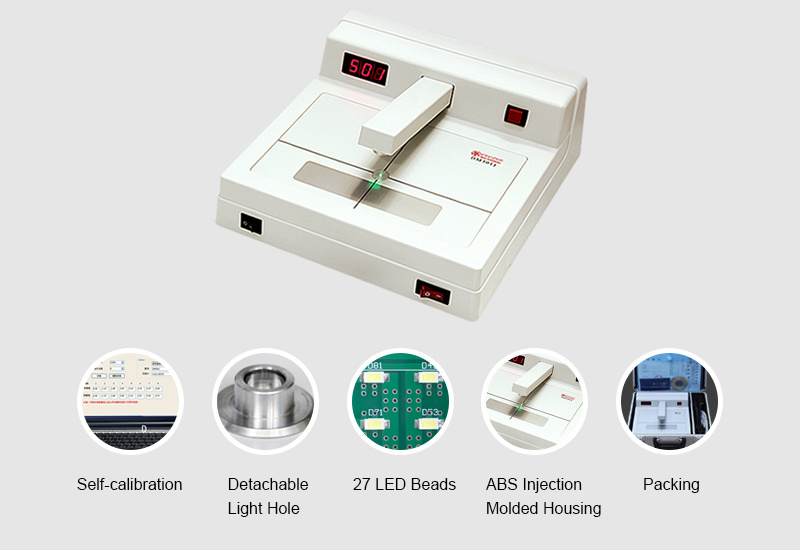

Product Features
Model Classification
DM3010、DM3010A、DM3011
Small size and lightweight, easy to carry
LED lighting source, long service life
Product Details

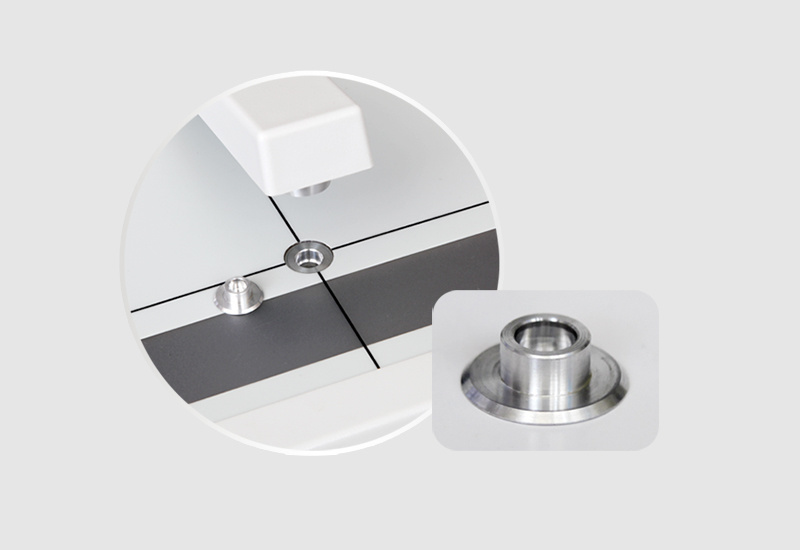

The light hole shell is detachable
The light hole is prone to dust accumulation.After a period of use, if the instrument does not show 0.00 when calibrating,the user can remove the light source shell with tape and gently wipe the dust off the light-emitting diode with a cotton swab dipped in alcohol to ensure the instrument functions normally.Product Details
LED Light Source
The lighting source consists of 27 LED Cbeads, suitable for various site measurements.
Product Details

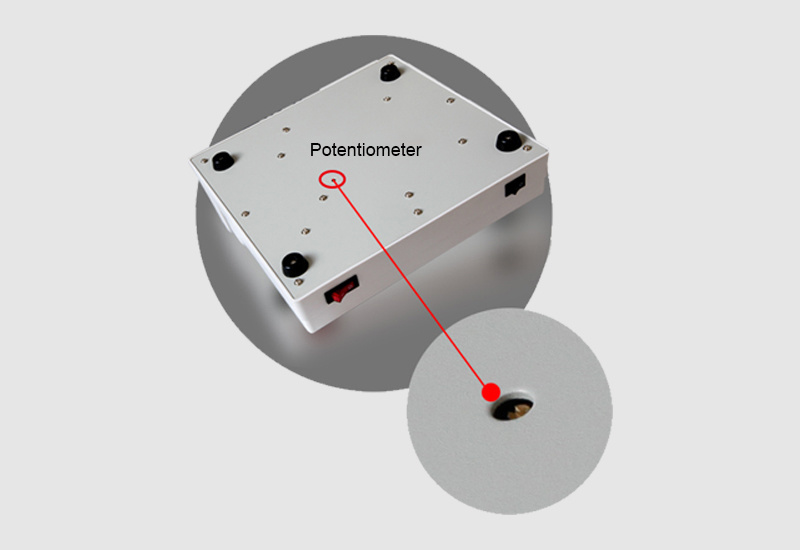

Fine-tuning Potentiometer
As the instrument ages, if the measurement values are consistently high or low, the potentiometer at the bottom of the instrument can be adjusted!Calibration Software

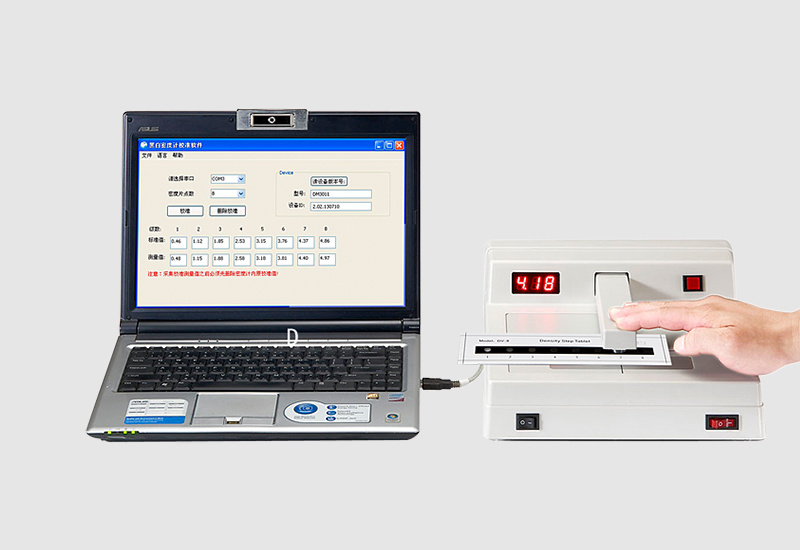

Comes with Calibration Software
Can be calibrated independently using the built-in calibration software and standard density step tablet.
Application Scenarios
Multi-scenario Use
Can be used in various industries such as non-destructive testing, photosensitive materials, film, printing, etc. -
Black and White Densitometer - Measured Application
-
Black and White Densitometer - Technical Parameters
Density Range D=0.00-4.00 (DM3010)
D=0.00-4.50 (DM3010A)
D=0.00-5.00 (DM3011)Reading Stability ±0.02 Display Error Measurement error ≤ ±0.05D Aperture Size Diameter 2mm Sampling Time 0.8 seconds Display Form Three-digit display Illumination Light Source 27 LEDs Communication Interface RS232 serial port, optional USB adapter Power Supply 50～60Hz, 200V±10% Dimensions 260×265×110 (Length×Width×Height) Operating Environment Temperature 0℃～40℃, Relative Humidity ≤85% Power Consumption About 25W Weight About 2.1kg Advantage 1:
The upgraded DM3010 series comes with calibration software, allowing users to calibrate using the built-in software and standard density plates.
Advantage 2:
The aperture can easily collect dust. If the calibration instrument does not show 0.00 after some time, users can open the light source cover with tape and gently wipe the dust off the LED with a cotton swab dipped in alcohol to ensure normal use of the instrument.
Advantage 3:
The illumination source consists of 27 LEDs, suitable for measurements in any location.
Advantage 4:
As the instrument ages, if the measurement values are consistently high or low, users can adjust the potentiometer located at the bottom of the instrument. -
Black and White Densitometer - Standard Configuration
● Black and White Densitometer ● Communication Disc ● Product Packaging Box ● Standard Density Sheet ● Certificate of Conformity ● User Manual ● Power Cable ● Packing List ● Communication Cable ● Warranty Card
