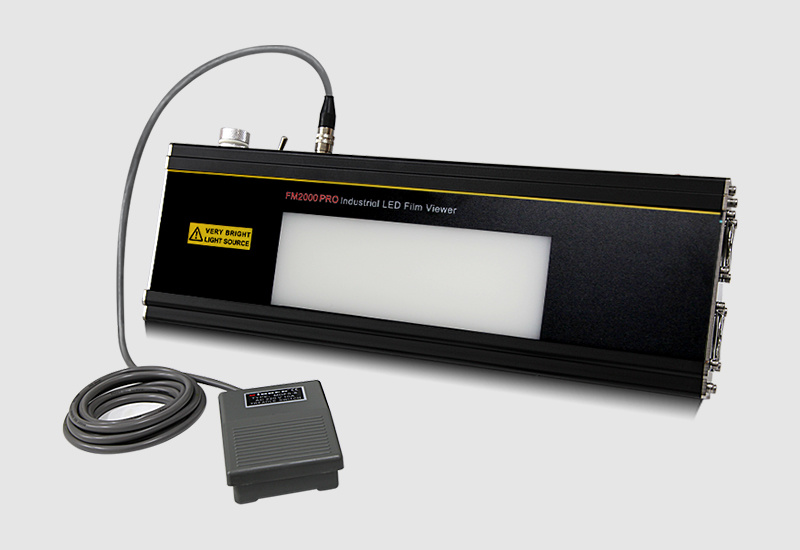

FM Series Industrial X- ray Film Viewer
Key words:
Product Classification:
- Product Features
- Applications
- Technical Parameter
- Standard Configuration
-
Product Features
Model Classification
FM1000, FM2000, FM2000PRO
LED Light Source
The built-in LED beads are evenly arranged, emitting light uniformly.

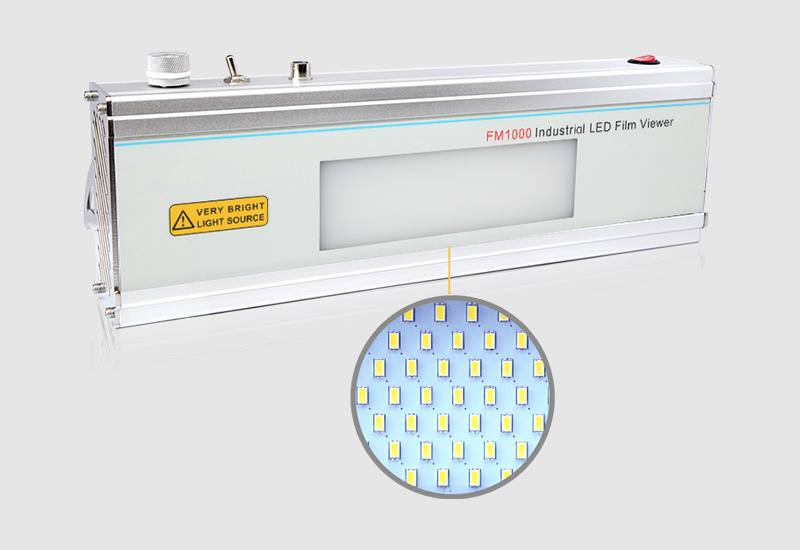

Number of LED Beads

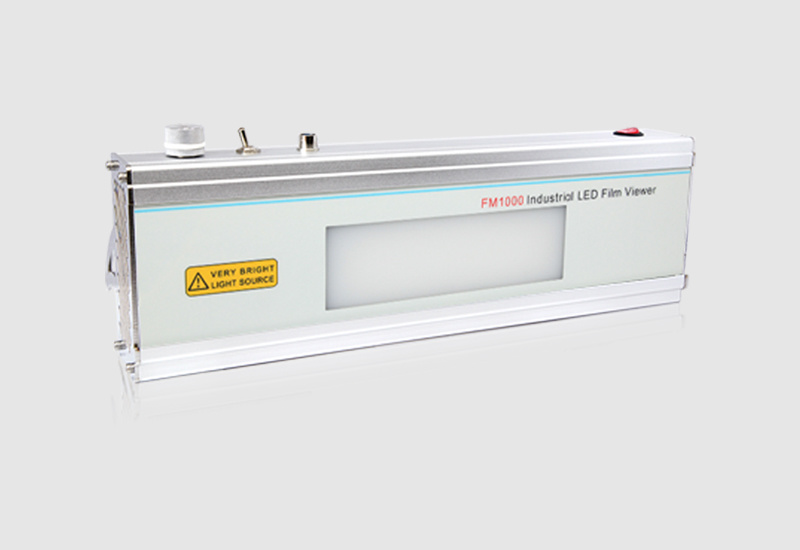

Built-in 140 LED Beads (FM1000)
Uniform light emissionNumber of LED Beads

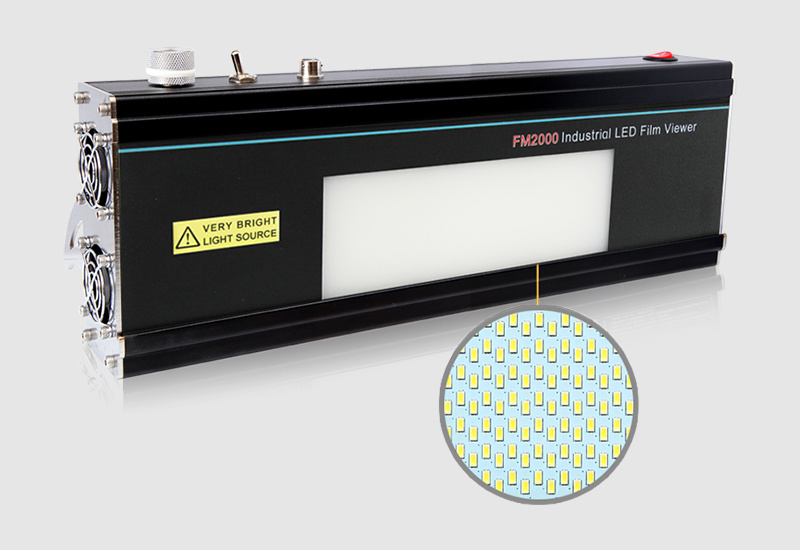

Built-in 280 LED Beads (FM2000, FM2000PRO)
Uniform light emission
Brightness is Infinitely Adjustable
FM1000 brightness > 100,000 cd/㎡ (300,000 LUX)
FM2000 brightness > 170,000 cd/㎡ (500,000 LUX)
FM2000PRO brightness > 300,000 cd/㎡ (800,000 LUX)Standard Wired Footswitch
Optional Wireless Footswitch
Product Details

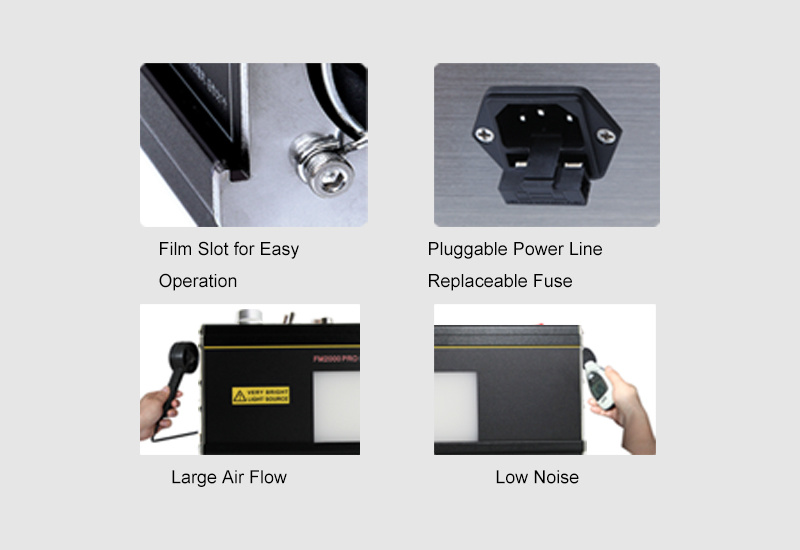

Convenient operation of film placement slot
Detachable power cord, replaceable fuse

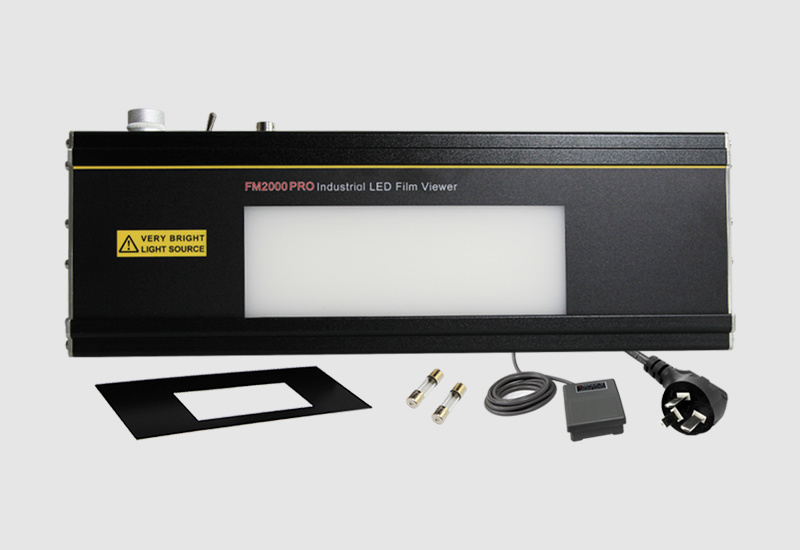

Bearing fan, high speed, low noise, quick heat dissipation.Product Packaging
Main Unit
Power Cord
Footswitch with Power Cord
Spare Fuse
Light Shield (except FM1000)
User Manual
Packing List
Warranty Card
-
Industrial Viewing Light - Measured Application
-
Industrial Viewing Lamp - Technical Parameters
Main Parameters FM1000 FM2000 FM2000PRO Number of LEDs (pieces) 140 280 280 Brightness 100,000 cd/㎡ (300,000 LUX) 170,000 cd/㎡ (500,000 LUX) 300,000 cd/㎡ (800,000 LUX) Observation Blackness <4.0D <4.0D <4.5D Observation Surface Area 200×60mm 220×75mm 220×75mm Power Supply 170-250VAC 50/60Hz 100-240VAC 50/60Hz 100-240VAC 50/60Hz Power Consumption 50W 100W 150W Size 456×142×68mm 456×154×68mm 456×154×68mm Weight 3.2kg 3.5kg 3.5kg -
Industrial Viewing Light - Standard Configuration
● Main Unit ● Light Shield (except FM1000) ● Certificate of Conformity ● Foot Switch ● Spare Fuse ● Warranty Card ● Power Cord ● User Manual ● Packing List
