Automobile sheet metal stamping parts thickness measurement

Product Sample

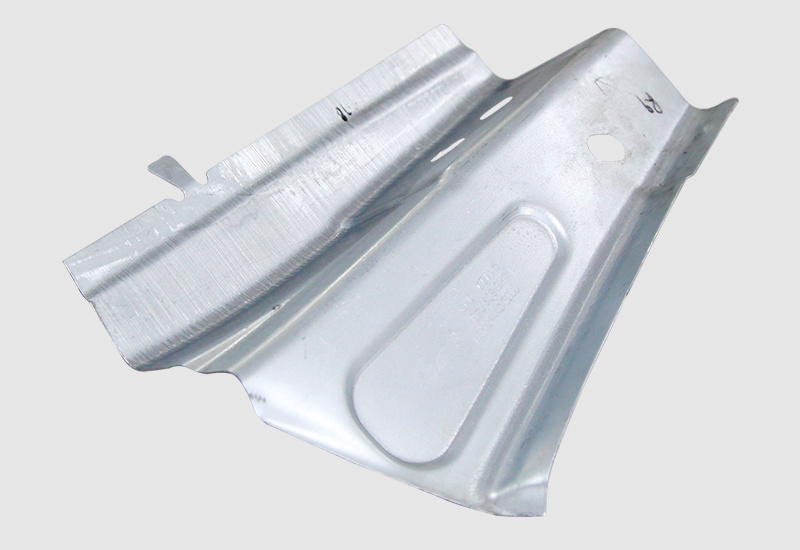

1. The workpiece has a complex and irregular shape, and the curvature at the corners makes it difficult to contact.

2. The thickness is thin, with automotive stamping parts having a thickness range of 0.3-3mm, which requires high detection accuracy for measuring instruments.

Probe Selection

· Delay Line Probe D15A6

The ultrasonic thickness gauge's ability to penetrate coatings is used to measure the net substrate thickness of pipes, boxes, or other metal materials with paint or coating on the surface.

No need to remove protective coatings, quickly and accurately measure metal thickness! This function is achieved by measuring the two consecutive bottom surface echoes of the substrate.

Probe Holder

· A fixed holder for probes that facilitates detection of different pipe diameters (Patented Products)

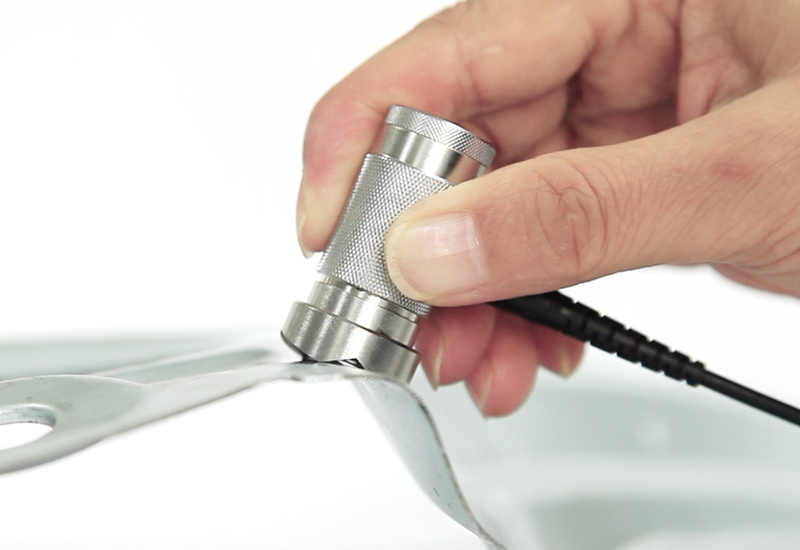

Due to the small contact area, it is difficult for the end of the delay block to remain perpendicular to the surface of the material being measured.

This can lead to weak echo signals or even no echoes. At this time, using a testing holder can stabilize the probe with a small measurement surface.

This makes the measurement more stable, the echoes clear, and the measured values accurate.

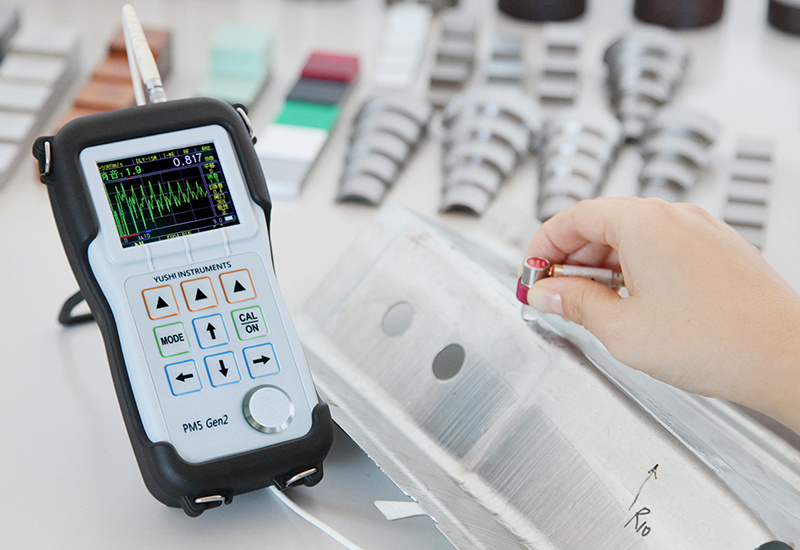

Actual Measurement Results

· Probe Type

15MHz Delay Line Probe

· Measurement Mode

Multiple Echo Verification Method
